ELINE LINEAR SET LSAC-20-DD-RT-G

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

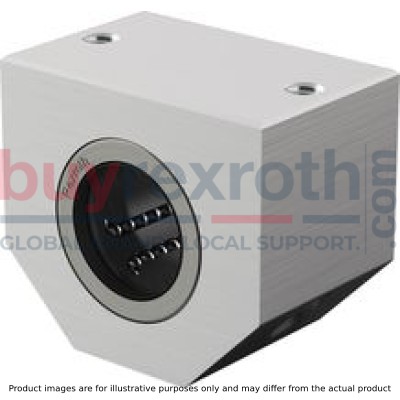

The Bosch Rexroth ELINE LINEAR SET (R102725344) is a high-precision linear motion set designed for various applications requiring smooth and accurate linear movement. This set includes a lightweight precision aluminum housing and an eLINE linear bushing, which is compact and closed. The shaft diameter 'd' is specifically engineered to ensure compatibility with corresponding components. Equipped with integrated wiper seals on both sides, the LSAC-20-DD-RT-G model ensures that contaminants are kept away from the bearing surfaces, thereby enhancing the longevity and reliability of the system. The presence of these seals also contributes to the frictional drags which are dependent on speed and lubrication conditions when not under radial load. This model is pre-lubricated with Dynalub, reducing maintenance requirements and providing smooth operation from initial use. The reduced radial clearance within the bushing allows for precise motion control, essential for applications demanding high accuracy. The dynamic load capacity 'C' of this linear set indicates its ability to withstand forces along the main direction of loading. For loads applied in other directions, Bosch Rexroth provides specific factors to adjust this capacity appropriately, ensuring that users can accurately calculate the capability of the set based on their particular application needs. Furthermore, the LSAC-20-DD-RT-G model has specified maximum acceleration ('amax'), ambient temperature ranges, breakaway force requirements, maximum permissible linear speeds ('vmax'), as well as static load ratings ('C') that denote its robustness in static conditions. This product belongs to Bosch Rexroth's product group ID for linear sets with linear bushings and is characterized by its closed format of linear bushings. It is an optimal solution for tasks requiring controlled and sustained linear movement within a specified temperature range while maintaining a low weight profile.
