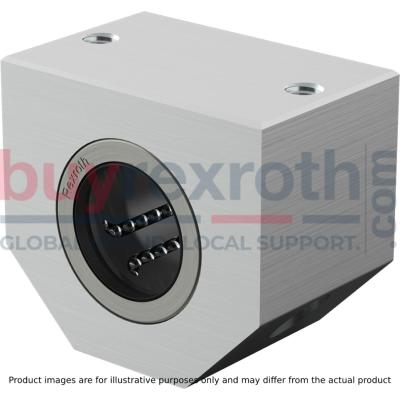

| Shaft diameter d | 16 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Format of linear bushings | – Closed |
| Series | Compact |
| Dynamic load capacity C | 1050 |
| Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Max. acceleration amax | 150 |
| Maximum permissible linear speed vmax | 5 |
| Outer diameter D | 24 |
| Static load rating C0 | 570 |
| Footnote static load capacity C0 | The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f0 = 0.86, ↩Ø d 20 to 50: f = 0.79, f0 = 0.68 |
| Size H | 19 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force | 2 |
| Friction force | 1 |
| Size A | 45 |
| Productgroup ID | 17 |
| Permissible ambient temperature (max) | +80 |
| Permissible ambient temperature (min) | -10 |
| Size S | 4.3 |
| Size D1 with tolerance | |
| Weight | 0.111 |
| Size D | 24 |
| Size E | 34 |
| Size H1 | 38 |
| Size H4 | 13 |
| Size L | 30 |
| Size N1 | 18 |
| Size N2 | 11 |
| Size SW | 2.5 |
