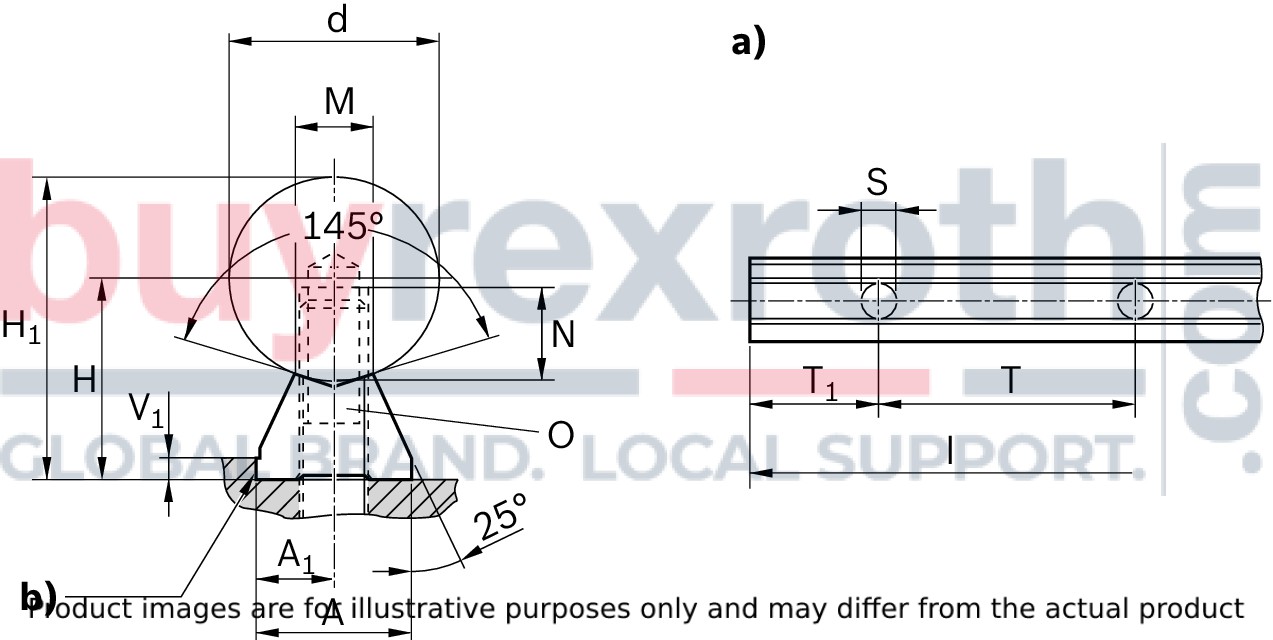

| This steel support rail helps create highly compact guides and is designed for when installing the steel shaft from underneath. Compared to conventional flanged versions, this element has extremely low height. |
| Reference edge makes aligning easier |
| Shaft support rail material: Steel |
| For use with open linear bushings |
| For long guides or high loads where self-supporting shafts cannot be used due to shaft warping |
| Unlimited length when using interconnecting shafts |
| Support rails for various requirements |
| Additional degrees of freedom in circumferential direction compared to profiled guide rails. |
| For applications where other linear guides tend to warp due to imprecise substructures. |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Mill-cut length L | 6100 |
| Size A | 30 |
| Size V1 | 4 |
| Productgroup ID | 17 |
| Maximum usable length Lmax | 5900 |
| Size A1 with tolerance | 15 mm ±0,02 |
| Size N | 21 |
| Size H | 39 |
| Footnote size H | Tolerance: ±0.02 mm; supplied sorted by height to 20 μm. |
| Material shaft support rails | Steel |
| Size S | 13.5 |
| Material of precision steel shafts | Heat-treated steel Cf53 |
| Size A1 | 15 |
| Mass m (kg/m) | 13.4 |
| Tolerance grade shaft | h7 |
| Shaft diameter d | 40 |
| Size M | 15 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Precision steel shafts with shaft support rails |
| Weight | 0.000 |
| Size H1 | 59 |
