TOLERANCE RING BN90X24

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

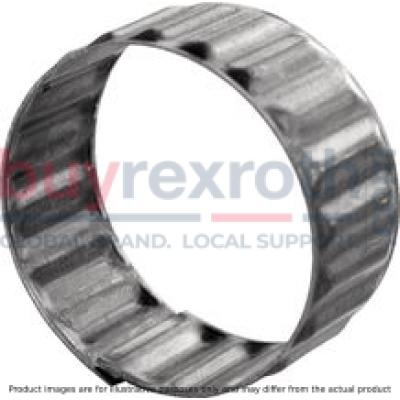

The Bosch Rexroth TOLERANCE RING (R082009001) is a precision-engineered component designed for establishing a fixed and secure connection between machine parts. This particular model, the BN90X24, is crafted from carbon steel, ensuring high temperature stability and resistance to various types of chemical stress. The tolerance ring features circumferential flat edges on its inner diameter, which are specifically purposed for use with a unit bore system. The BN90X24 has been developed to compensate for differences in thermal expansion between connected elements made from dissimilar materials, thereby eliminating the need for keyways or other positive-locking connections. Its design allows for quick and economical installation while maintaining a large tolerance zone that accommodates connecting parts. This model boasts an impressive nominal size of 90mm in diameter (d) by 24mm in width (b), offering a substantial transferable torque capacity that ensures reliable performance under operational stresses. It's important to note that while the tolerance ring can sustain continuous operation at temperatures up to a certain degree Celsius, it can also handle brief peaks at higher temperatures. The weight of the BN90X24 tolerance ring is minimal, contributing to its designation as an extremely low-cost machine element without compromising on quality or functionality. Additionally, special sizes are available upon request to meet specific application requirements. For those concerned with load capacities, it's advisable to consult the general technical notes provided by Bosch Rexroth as pulsating and alternating loads may necessitate considerably smaller permissible radial load values than those stated for continuous loads. In summary, the Bosch Rexroth TOLERANCE RING BN90X24 offers an efficient solution for creating durable mechanical connections in various applications where cost-effectiveness and adaptability to thermal expansion are key considerations.
