TOLERANCE RING AN200X31
Manufacturer: Bosch Rexroth
Material #: R081020003
Model : TOLERANCE RING AN200X31
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

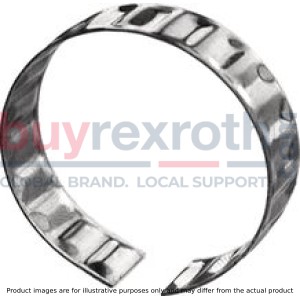

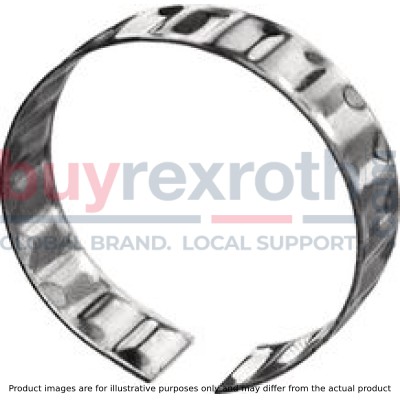

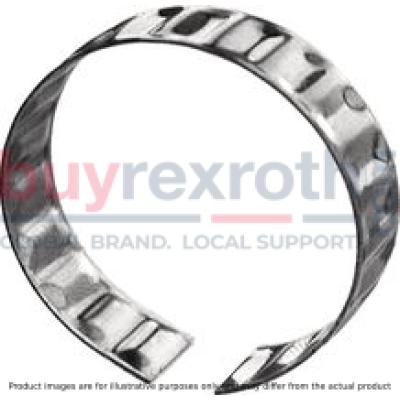

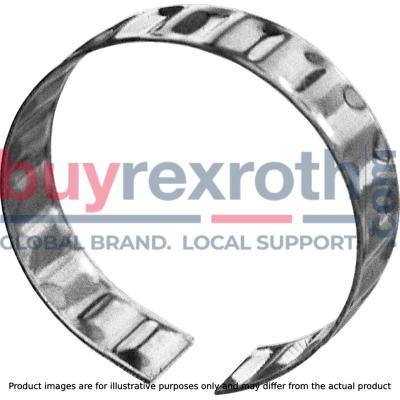

The Bosch Rexroth TOLERANCE RING AN200X31 (R081020003) is a precision-engineered component designed to provide a fixed and secure connection between machine parts. This tolerance ring is part of the AN series, characterized by its circumferential flat edges on the outer diameter, which are intended for use with a standard nominal shaft. The product is made from carbon steel, ensuring durability and resistance to various types of chemical stress.
With nominal size dimensions of 200mm in diameter and 31mm in width, the AN200X31 model offers high temperature stability for continuous operation up to a certain temperature, with brief peaks allowable at higher temperatures. It is designed to compensate for differences in thermal expansion between connected elements made from different materials. This feature helps maintain the integrity of mechanical assemblies across a range of operating conditions.
The installation of this tolerance ring is quick and economical, which makes it an extremely cost-effective solution for many applications. The design eliminates the need for keyways or other positive-locking connections, simplifying the overall design of connecting parts. Despite its simplicity, it provides a large tolerance zone ensuring reliable performance even when there are variations in component sizes.
For engineers requiring specific dimensions or capabilities beyond the standard offering, special sizes of the tolerance ring can be requested to meet unique application needs. The transferable torque and permissible radial load specifications are detailed in technical notes provided by Bosch Rexroth, with guidelines available for free installation conditions.
Overall, the Bosch Rexroth TOLERANCE RING AN200X31 (R081020003) represents a versatile and reliable choice for creating secure connections within mechanical systems without compromising on ease of assembly or cost-effectiveness.
$28.06 USD
More are expected on March 14, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 14, 2025 when ordered in
