TOLERANCE RING AN20X12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

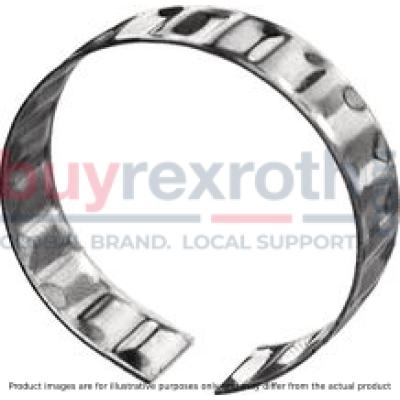

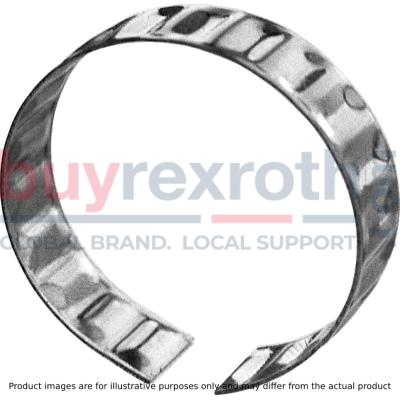

The Bosch Rexroth TOLERANCE RING AN20X12 (R081002001) is a robust and versatile component designed for securing machine elements with standard nominal shafts. This particular model of tolerance ring features circumferential flat edges on its outer diameter, which are integral to its design and function. Constructed from carbon steel, the AN20X12 tolerance ring offers high temperature stability, capable of continuous operation up to a certain temperature with brief peaks allowable at higher temperatures. With dimensions that include a specific tolerance ring diameter (d) and width (b), the AN20X12 is engineered to compensate for differences in thermal expansion between connected machine parts made of different materials. This compensation helps maintain a fixed and secure connection without the need for keyways or other positive-locking connections, simplifying the design of the connecting parts. Installation of this tolerance ring is quick and economical, providing an extremely cost-effective solution for mechanical assemblies. It also boasts resistance to various types of chemical stresses, ensuring durability in challenging environments. The product allows for a large tolerance zone when connecting parts, further enhancing its adaptability. The Bosch Rexroth AN20X12 has specified guidelines for transferable torque and permissible radial load, ensuring reliable performance under designated operational conditions. Special sizes can be requested to suit unique requirements, making it a flexible solution for diverse applications. In summary, the Bosch Rexroth TOLERANCE RING AN20X12 is an efficient and reliable choice for creating secure connections in mechanical assemblies while accommodating material expansion and reducing design complexity.
