SUPER LINEAR BUSHING KBH-50-D

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

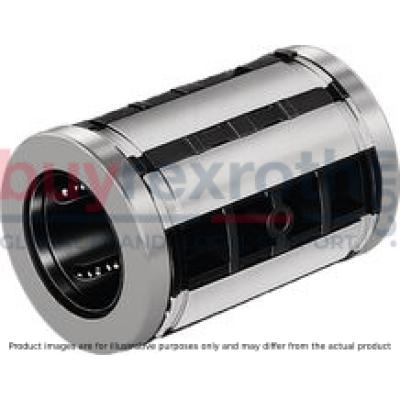

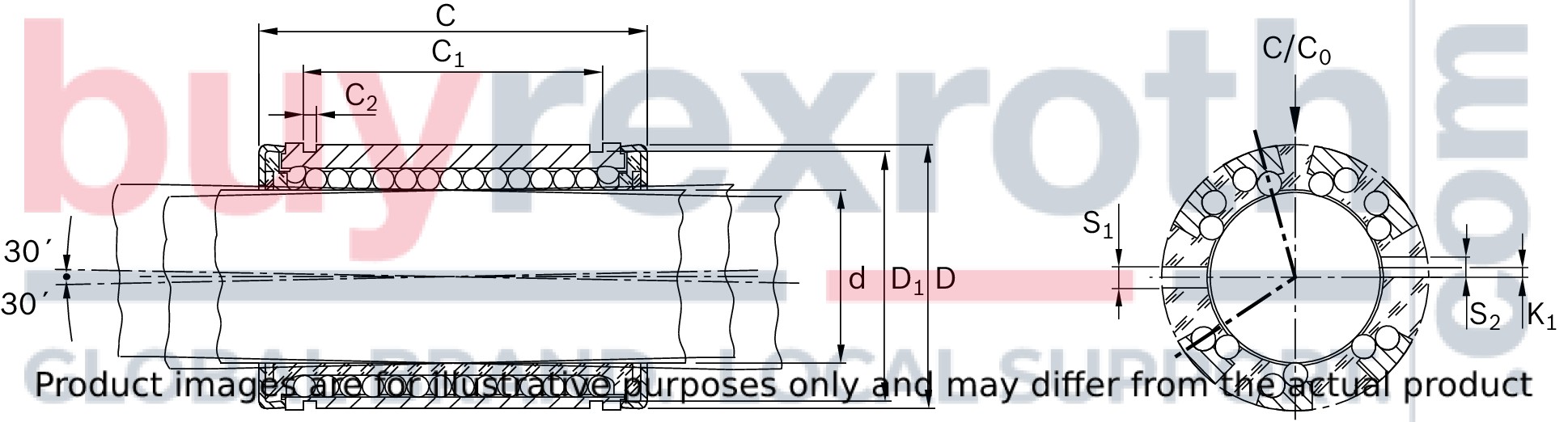

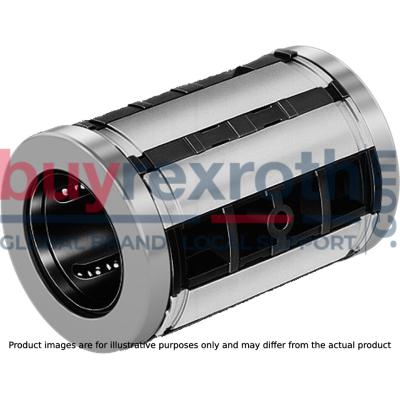

The Bosch Rexroth SUPER LINEAR BUSH KBH-50-D (R073215040) is a high-precision linear bushing designed for moving heavy loads with maximum precision. This Super H series bushing is closed and features a shaft diameter of 50mm, complete with one seal to maintain cleanliness and protect the internal components. The load-bearing plates are made of hardened steel with meticulously machined ball guide grooves, ensuring smooth ball movement and high load capacity. The KBH-50-D is equipped with a POM ball retainer and balls crafted from rolling bearing steel, which contribute to its durability and reliability. The design includes two metal holding rings that secure the components in place, allowing for multiple rows of balls that enhance its ability to compensate for shaft deflection and misalignment. This linear bushing can handle high travel speeds and is capable of operating within an ambient temperature range of -30°C to +80°C. It has been engineered to withstand a dynamic load capacity, ensuring it can support substantial loads in its primary loading direction. For applications requiring additional sealing against contaminants, optional integrated double-lipped wiper seals can be included. The Bosch Rexroth SUPER LINEAR BUSH KBH-50-D boasts low friction coefficients that vary depending on the load but are optimized for heavy-load conditions. Its design allows for quick breakaway force calculations by applying a specific multiplication factor when equipped with one wiper seal. This product falls under the Productgroup ID for linear bushings and shafts, confirming its compatibility with corresponding linear guides. In summary, the KBH-50-D offers robust performance for applications requiring precise linear motion under significant loads while providing options for customization through additional sealing solutions. Its construction ensures longevity and consistent operation even in challenging environments.
