SUPER LINEAR BUSHING KBSH-O-40

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

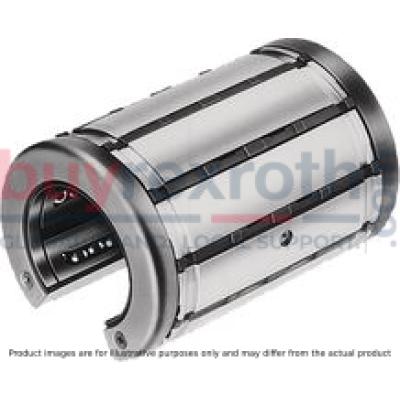

The Bosch Rexroth SUPER LINEAR BUSH (R073104000) is a high-precision linear bushing designed for the movement of heavy loads with maximum accuracy. The model SUPER SH is an open type without a seal, featuring hardened steel load-bearing plates with meticulously machined ball guide grooves, and a steel load-bearing plate back. This design ensures exceptional precision and durability. This bushing has an increased number of running tracks, enhancing its dynamic load rating and rigidity, making it suitable for applications requiring high-speed movements and the ability to compensate for shaft deflection and misalignment. It boasts an impressive high travel speed capacity, further contributing to its efficiency in dynamic applications. The SUPER LINEAR BUSH is equipped with a polyoxymethylene (POM) ball retainer and balls crafted from rolling bearing steel, ensuring smooth motion and reliable performance. The unit also includes two metal holding rings that secure the components in place while allowing for ease of maintenance. For applications where additional protection against contaminants is needed, optional integrated double-lipped wiper seals can be fitted to the bushing. These seals prevent the ingress of dirt while maintaining low frictional drag which depends on speed and lubrication conditions. With a static load rating C0 that accounts for the main direction of loading and minimal friction coefficients that vary under different loads, this linear bushing is tailored to provide consistent performance under varying conditions. The product operates effectively within a permissible ambient temperature range of -30°C to +80°C. The Bosch Rexroth SUPER LINEAR BUSH comes in size E with an outer diameter D of 62 mm. Its dynamic load capacity C0 confirms its ability to withstand heavy-duty use while maintaining a low breakaway force for efficient operation. Weighing just 1 kg, this linear bushing offers a balance between robustness and ease of integration into various mechanical setups.
