SUPER LINEAR BUSHING KBSH-40-D

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

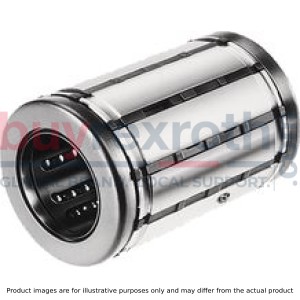

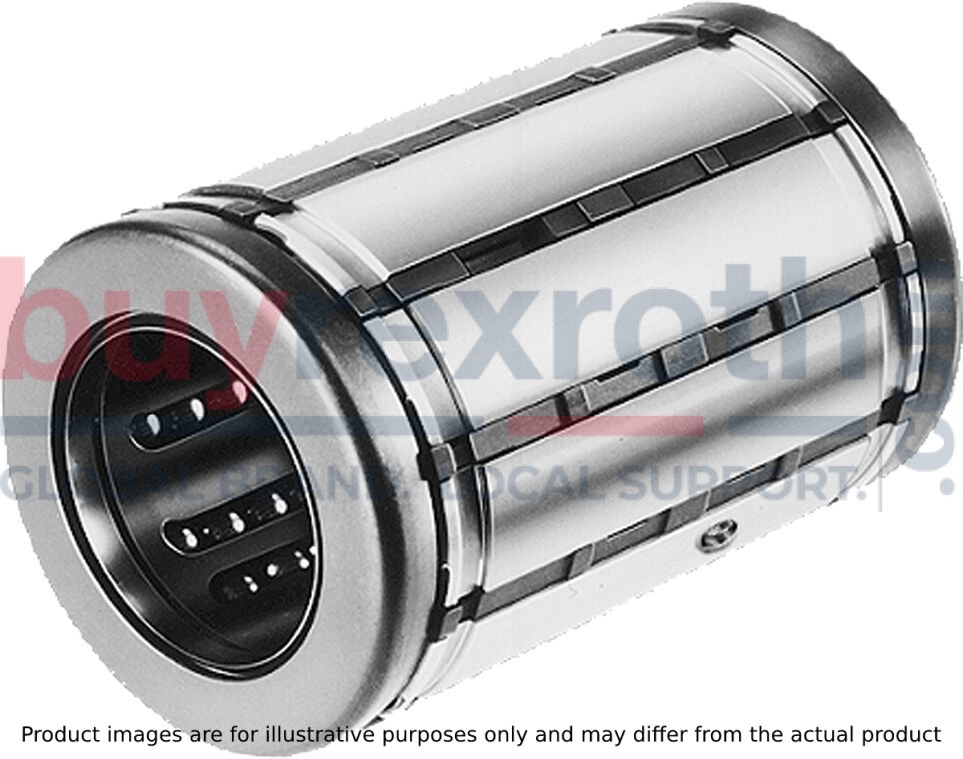

The Bosch Rexroth SUPER LINEAR BUSH (R073014040) is a high-precision linear bushing designed to facilitate the movement of heavy loads with great accuracy. This closed-type linear bushing features a shaft diameter of 40 mm and is equipped with one seal to ensure smooth operation. The SUPER SH series bushing is constructed with hardened steel loadbearing plates that have meticulously machined ball guide grooves, along with a machined steel loadbearing plate back. This design provides exceptional precision and allows the bushing to handle maximum dynamic load ratings and achieve superior rigidity. The SUPER LINEAR BUSH compensates for shaft deflection and misalignment, ensuring consistent performance even under challenging conditions. It boasts a high travel speed capability, with an optional integrated double-lipped wiper seals available to protect against contaminants. The POM ball retainer and rolling bearing steel balls are designed for durability and smooth motion, while two metal holding rings secure the assembly. This model has multiple rows of balls that enhance its load-bearing capacity, making it suitable for applications requiring both high load support and precise linear movement. The dynamic load capacity C indicates the bushing's ability to withstand forces during motion, while the static load rating C0 reflects its capacity when stationary. The SUPER LINEAR BUSH operates effectively within a permissible ambient temperature range from -30°C to +80°C, ensuring reliability across various environments. Its outer diameter measures D, contributing to its robust structure. With a weight of 2.4 kg, it maintains a balance between heft and functionality. In summary, the Bosch Rexroth SUPER LINEAR BUSH (R073014040) offers an advanced solution for linear motion applications where precision and heavy-load handling are paramount. Its robust design coupled with its ability to compensate for misalignments makes it an essential component in sophisticated mechanical setups requiring high accuracy and rigidity.
