SUPER LINEAR BUSHING KBSH-30-D

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

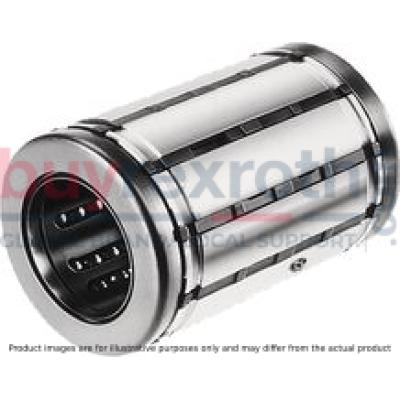

The Bosch Rexroth SUPER LINEAR BUSH (R073013040) is a high-precision linear bushing designed to accommodate the movement of heavy loads with exceptional accuracy and reliability. This model, part of the Super SH series, features a closed configuration with a shaft diameter 'd' that is optimal for various dynamic applications. It comes equipped with one seal to ensure protection against contaminants while maintaining smooth motion. The SUPER LINEAR BUSH is engineered with hardened steel load-bearing plates which include meticulously machined ball guide grooves. These grooves work in tandem with the machined steel load-bearing plate back to deliver maximum precision. The design incorporates more running tracks than standard models, enhancing the dynamic load rating and rigidity of the bushing. This allows it to compensate effectively for shaft deflection and misalignment up to specified limits, ensuring consistent performance even under challenging conditions. For applications demanding high travel speeds, this linear bushing can reach speeds of 'ms', supported by its POM ball retainer and balls made from rolling bearing steel. The robust construction includes two metal holding rings that contribute to the unit's durability and longevity. The dynamic load capacity 'C' and static load rating 'C0' indicate this bushing's ability to handle significant loads in its main direction of operation. With a friction coefficient ranging from 'min' to 'max', users can expect efficient motion transfer with minimal resistance. The product also offers optional integrated double-lipped wiper seals for additional protection against external elements. Designed to operate within an ambient temperature range of '- C ... + C', it remains reliable across various environmental conditions. The outer diameter 'D' is standardized for compatibility with related equipment, while the breakaway force and friction force are carefully calibrated for predictable performance. With a weight of '. kg', it maintains a balance between sturdiness and ease of integration into existing systems. Overall, the Bosch Rexroth SUPER LINEAR BUSH (R073013040) is an advanced solution for linear motion requirements where precision, load capacity, and durability are paramount. Its design assures smooth operation even at high speeds or under substantial loads, making it suitable for a wide range of industrial applications.
