TORQUE RESISTANT BUSHING KBDR4-F-16DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

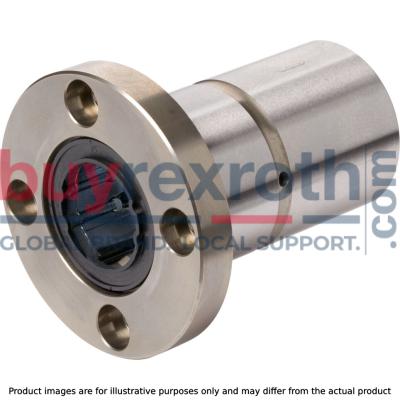

The Bosch Rexroth TORQUE RESIST.BUSH KBDR4-F-16DD (R072521600) is a high-precision, torqueresistant linear bushing designed for self-supporting, torsionally stiff guides with only one shaft. This flanged version features four ball guide grooves that are essential for transferring torque effectively. The KBDR4-F-16DD is equipped with integrated wiper seals and a POM ball retainer, ensuring smooth operation and longevity of the component. The balls within the bushing are made from rolling bearing steel, which contributes to its robustness and reliability. With a shaft diameter of 16mm, the linear bushing is engineered to accommodate matching shaft profiles with machined ball guide grooves. These shafts are customized according to customer specifications to ensure a perfect fit and optimal performance. The outer sleeve of the bushing is both hardened and ground, providing resistance against wear and tear. This model boasts relubrication capabilities which allow for maintenance and extension of service life. It operates efficiently within a wide range of ambient temperatures, maintaining performance from low to high extremes. The dynamic load capacity C as well as static load rating C are indicative of the minimal values due to varying loading directions. Additionally, the KBDR4-F-16DD can handle maximum permissible linear speeds (vmax) and accelerations (amax), while also offering significant static torsional moment load capacity (Mt) and dynamic torsional moment load capacity (Mt). These features make it suitable for numerous applications where precise motion control and torque resistance are required. The linear guide type for this component falls under the category of linear bushing and shaft with a format F for flange type bushings. Lastly, it has been designed with attention to weight optimization without compromising on strength or functionality.
