SOLID SHAFT WVD4-10-600 ...

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

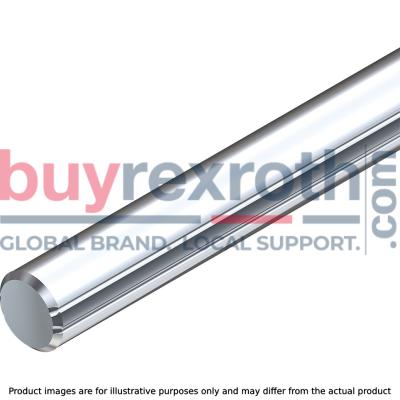

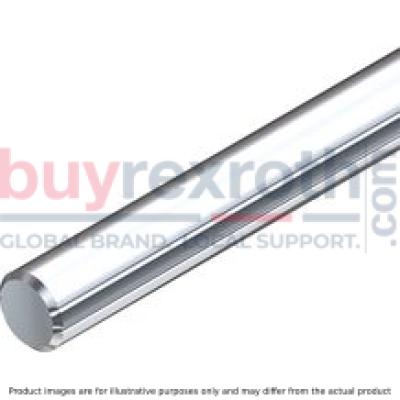

The Bosch Rexroth SOLID SHAFT (R072401002) is a high-quality precision steel shaft designed for use with torque-resistant linear bushings. This solid shaft is crafted from heat-treated steel, ensuring durability and long-lasting performance. It features a standard length that is compatible with various types of linear bushings, including the flanged type R, miniature flanged R, and rotational flanged R series. The model code WVD4-10-600 indicates specific dimensions and characteristics of the shaft, such as its maximum usable length (Lmax) and detailed shaft diameter. This particular precision steel shaft includes ball guide grooves which enhance its capability to support linear motion applications that require high levels of accuracy and rigidity. The material's heat treatment process contributes to the shaft's strength, making it an excellent choice for environments where mechanical stress is prevalent. Its tolerance grade (shaft h) falls within precise limits to ensure compatibility with corresponding linear guide components. The mass of the Bosch Rexroth SOLID SHAFT is denoted in kilograms per meter (kg/m), reflecting the weight distribution along its length. This information is crucial for engineers and designers when calculating load capacities and system dynamics. The actual diameter varies slightly to accommodate specific application requirements while maintaining strict manufacturing tolerances. In summary, this Bosch Rexroth precision steel shaft offers reliability and precision for various linear motion systems. Its robust construction paired with precise manufacturing makes it an ideal component for ensuring smooth operation in demanding applications.
