SUPER LINEAR BUSHING KBB-16

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

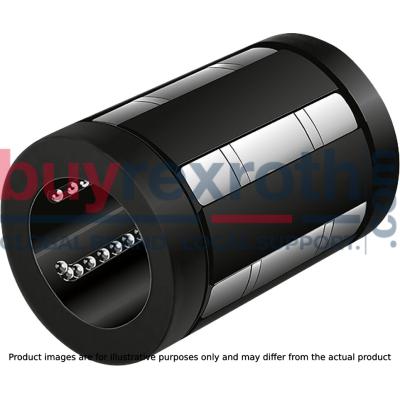

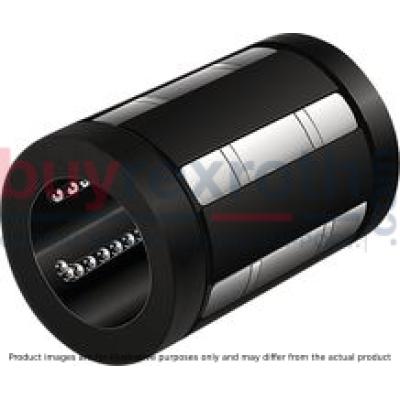

The Bosch Rexroth SUPER LINEAR BUSH (R067201600) is a high-quality linear bushing designed for smooth travel and a long service life. This particular model, the KBB-16, is part of the Super LB B series, which is characterized by its closed design and lack of self-alignment features. The bushing is suitable for applications requiring the transfer of lower tipping force along the axial direction and can achieve high travel speeds up to a maximum of 5 m/s. Constructed with steel bearing plates that include machined ball guide grooves and optimized ball lead-in chamfers, it ensures exceptionally smooth operation. The KBB-16 does not come with seals, which makes it a low-cost option for high requirements in linear motion tasks. It employs balls made from rolling bearing steel within a retainer and outer sleeve fashioned from either PA or POM materials. This model has been designed without initial lubrication and features various dynamic load capacities based on total travel distance; with Cmin and Cmax values provided for travels of 100 km, which can be adjusted when based on 50 km. The KBB-16 operates efficiently within an ambient temperature range of -30°C to +80°C. It also specifies friction coefficients under different conditions, ensuring users can anticipate performance characteristics under varying loads and lubrication states. With an outer diameter of D = 28 mm, the SUPER LINEAR BUSH offers a maximum dynamic load capacity (Cmax) and has been tested for total travels ranging from 10^4 to 10^5 meters without failure. The product's weight is stated as 0.1 kg, providing information critical for design considerations where weight may be a limiting factor. Overall, the Bosch Rexroth SUPER LINEAR BUSH KBB-16 offers reliable performance in linear motion applications where cost-effectiveness is as much a priority as precision and durability.
