COMPACT LINEAR BUSHING KBC-10-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

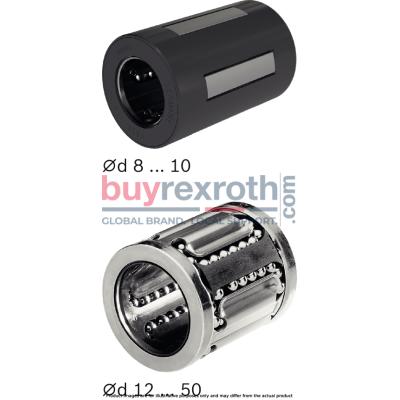

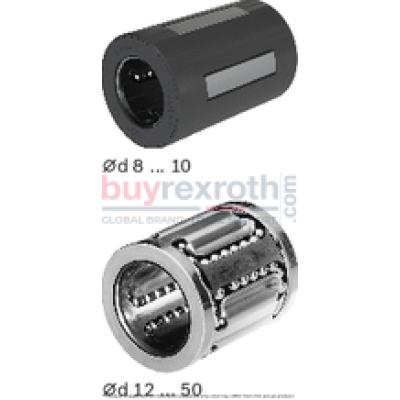

The Bosch Rexroth COMPACT LIN. BUSH. KBC-10-DD (R065821040) is a high-performance compact linear bushing designed for smooth and accurate linear motion applications. This model features a shaft diameter of 10 mm and is equipped with two seals to protect against contaminants, ensuring a long service life and high dynamic load rating. The bushing is not lubricated, which makes it suitable for applications where maintenance needs to be minimal. With standard radial clearance, the KBC-10-DD offers small outer dimensions and an extremely compact construction that can support high travel speeds. Its hardened segmental loadbearing plates provide excellent ball conformity within the running track, contributing to the bushing's high dynamic load ratings and efficiency in operation. The design incorporates many pockets that serve as lubricant reservoirs, allowing for extended lubrication intervals or potentially lubrication-free operation depending on the application's requirements. These pockets also play a crucial role in collecting dirt and debris to prevent jamming of the linear bushing. Mounting this linear bushing is straightforward; it simply requires pressing onto the desired location without the need for additional retention mechanisms. Integrated metal retaining rings are slightly larger than the outer diameter of compatible shaft diameters ranging from 3 to 50 mm, ensuring a secure fit in the housing bore. The KBC-10-DD has been engineered with a focus on low-cost efficiency while meeting general requirements for linear motion systems. It offers impressive specifications such as a maximum dynamic load capacity (Cmax), minimum static load capacity (Cmin), and can operate within an ambient temperature range of -30°C to +80°C. The product also features low friction coefficients ranging from 0.01 to 0.25, which vary based on load conditions and lubrication. Overall, this Bosch Rexroth compact linear bushing is an ideal solution for various applications requiring precise linear guidance with minimal maintenance efforts.
