$155.56 USD
Product Surcharge: $1.17 USD
Available for immediate shipmentQty: Delivered as early as April 8, 2025 when ordered in
Qty: Delivered as early as June 25, 2025 when ordered in

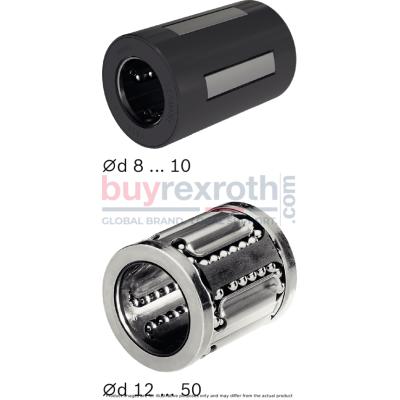

| Low-cost linear bushing for general requirements |
| Small outer dimensions and highly compact construction |
| High dynamic load rating and long service life due to hardened segmental load-bearing plates with ball conformity in the running track |
| Stainless steel for the medical, chemistry and food industries: Segmental load bearing plates comprising 1.4037 balls made from 1.3541 |
| Integrated wiper seals, external seals or no wiper seals |
| Normal radial clearance |
| Not greased |
| High travel speed (5 m/s) |
| Simple mounting: Just press on – no additional retention needed |
| Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life |
| Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming. |
| Integrated metal retainer about 0.1 mm larger than outer diameter (shaft diameters 12 to 50) for secure fit in housing bore |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Friction force | 0.4 |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Friction coefficient μ min. | 0.001 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Rows of balls | 4 |
| Series | Compact |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Productgroup ID | 17 |
| Maximum dynamic load capacity Cmax | 410 |
| Permissible ambient temperature (max) | |
| Max. acceleration amax | 150 |
| Footnote friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Outer diameter D | 15 |
| Breakaway force | 0.8 |
| Permissible ambient temperature (min) | |
| Maximum permissible linear speed vmax | 5 |
| Size D | 15 |
| Length of linear bushing | 24 |
| Friction coefficient μ | 0,001 ... 0,004 |
| Friction force FR footnote 2 | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Minimum static load capacity C0min | 280 |
| Maximum static load capacity C0max | 400 |
| Minimum dynamic load capacity Cmin | 350 |
| Shaft diameter d | 8 |
| Linear guide type | Linear bushing and shaft |
| Format of linear bushings | – Closed |
| Filter for linear bushings and shafts | Linear bushings |
| Footnote minimum static load capacity C0min | |
| Friction coefficient μ max. | 0.004 |
| Footnote maximum static load capacity C0max | |
| Weight | 0.0079 |
| Size D1 with tolerance | |
| Size C | 24 |
| Radial clearance shaft/bore h6/H7 |
