STANDARD LINEAR BUSHING KBM-E-60

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

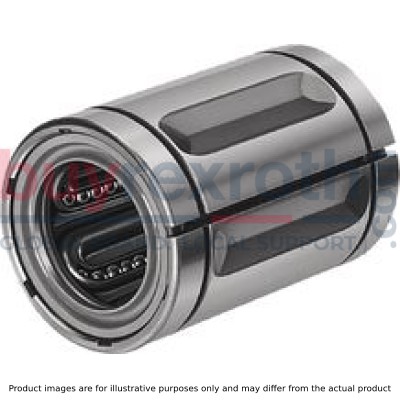

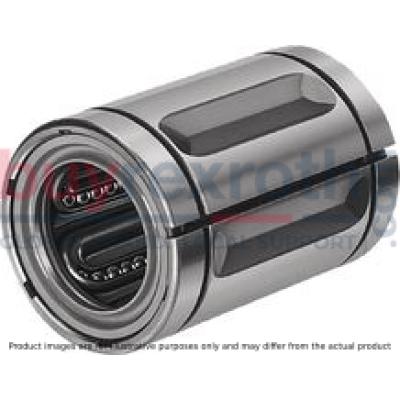

The Bosch Rexroth STD.LINEAR BUSHING KBM-E-60 (R061006000) is a high-quality standard linear bushing designed for a variety of demanding applications. This adjustable, seal-free linear bushing is constructed with a rugged all-metal design, featuring a steel ball retainer that is suitable for harsh environments and heavy contamination. Its design includes many pockets that act as lubricant reservoirs, allowing for extended lubrication intervals or even lifetime lubrication. The KBM-E-60 model has been engineered to operate effectively in conditions with higher temperatures or under vacuum, thanks to its sealfree construction and steel ball retainers that accommodate shaft diameters of 60 and higher. The radial clearance of this linear bushing can be adjusted to suit specific application needs, ensuring optimal performance. This linear bushing does not have wiper seals but comes with integrated steel retaining rings which allow it to withstand higher temperatures. It is particularly suited for use in industries such as woodworking, foundries, and cement plants where contaminants are prevalent. The pockets in the design are intended to collect dirt and prevent the bushing from jamming. The outer sleeve of the KBM-E-60 is hardened and ground for durability, while the shaft diameters of 60 and higher feature a steel ball retainer; smaller diameters utilize a plastic retainer made from PA. The balls themselves are made from rolling bearing steel which ensures smooth movement along the shaft. With regards to its specifications, this model offers excellent load capacities—both dynamic and static—and can sustain significant accelerations. The permissible ambient temperature range for operation extends from -30°C up to +80°C without compromising its functionality. Additionally, it has been designed with consideration for friction forces; even when equipped with one wiper seal, it maintains an efficient performance by multiplying the value with a specific factor. In summary, the Bosch Rexroth STD.LINEAR BUSHING KBM-E-60 (R061006000) stands out as a versatile component suitable for applications requiring robustness against contamination and high-temperature resilience while maintaining precision in movement and load handling capabilities.
