Accuracy classes P, H and N |
Relubrication hole available |
Smooth, quiet running thanks to optimally designed ball return and guideway |
Ball retention for easy replacement |

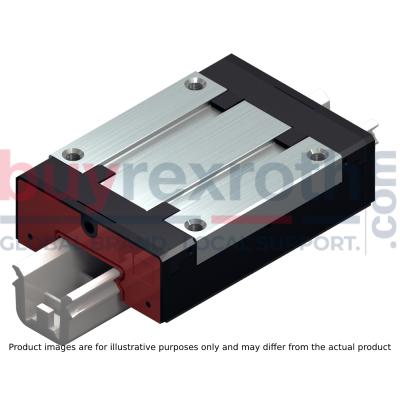

Data Sheet | Download Data Sheet |
2D CAD | Download 2D CAD |
2D CAD | Download 2D CAD |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Material (profiled rail systems) | Corrosion resistant steel |
Height of runner block | 6.5 |
Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. |
Footnote dynamic load capacity C | Calculated values acc. to DIN 636, part 2 |
Size E2 (profiled rail systems) | 8 |
Max. acceleration amax | 250 |
Permissible ambient temperature | -10 °C ... +80 °C |
Size A (profiled rail systems) | 17 |
Size A3 (profiled rail systems) | 5 |
Preload force | 17 |
Format | SNS - slimline, normal, standard height |
Size A2 (profiled rail systems) | 7 |
Self-aligning for compensation of misalignments | Without self-alignment |
Static torsional moment load capacity Mt0 footnote | Calculated values (derived from C, C0) |
Maximum permissible linear speed vmax | 3 |
Lubrication | Without initial lubrication and without preservation |
Ball chain | Without ball chain (standard) |
Size N3 (profiled rail systems) | 2.5 |
Footnote static load capacity C0 | Calculated values acc. to DIN 636, part 2 |
Pitch T guide rail | 15 |
Height of runner block with guide rail | 8 |
Static load rating C0 | 1400 |
Dynamic torsional moment load capacity Mt | 3.1 |
Size B (profiled rail systems) | 24 |
Note: Maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. |
Preload class | C1 - Low preload |
Static longitudinal moment load capacity ML0 footnote | Calculated values (derived from C, C0) |
Seal | Low-friction seal (mini) |
Size B1 (profiled rail systems) | 14.9 |
Size H (profiled rail system) | 8 |
Size V1 | 2 |
Productgroup ID | 17 |
Accuracy class | P - Precise |
Size B with tolerance (profiled rail systems) | 24 mm |
Dynamic longitudinal moment load capacity ML footnote | Calculated values (derived from C, C0) |
Permissible ambient temperature (max) | |
Dynamic longitudinal moment load capacity ML | 1.9 |
Size S2 (profiled rail systems) | M2 |
Permissible ambient temperature (min) | |
Static torsional moment load capacity Mt0 | 5.1 |
Note: Max. acceleration amax | Only with preloaded systems. For non-preloaded systems: amax = 50 m/s2 |
Runner block or guide rail | Runner block |
Width of runner block | 17 |
Size T1 min (profiled rail systems) | 5 |
Dynamic torsional moment load capacity Mt footnote | Calculated values (derived from C, C0) |
Length of runner block | 24 |
Linear guide type | Miniature ball rail system |
Dynamic load capacity C | 860 |
Static longitudinal moment load capacity ML0 | 3.2 |
Size E1 (profiled rail systems) | 12 |
Internal product information | For low-friction seal (Mini) without longitudinal seal |
Weight | 0.009 |
Nominal size | 7 |
Size H1 (profiled rail systems) | 6.5 |
