$265.78 USD
More are expected on March 24, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 24, 2025 when ordered in
$265.78 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 24, 2025 when ordered in
Accuracy classes P, H and N |
Relubrication hole available |
Smooth, quiet running thanks to optimally designed ball return and guideway |
Ball retention for easy replacement |

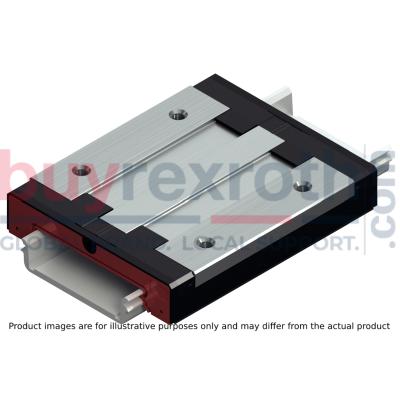

Data Sheet | Download Data Sheet |
2D CAD | Download 2D CAD |
2D CAD | Download 2D CAD |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Material (profiled rail systems) | Corrosion resistant steel |
Height of runner block | 12 |
Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. |
Footnote dynamic load capacity C | Calculated values acc. to DIN 636, part 2 |
Size E2 (profiled rail systems) | 35 |
Max. acceleration amax | 250 |
Permissible ambient temperature | -10 °C ... +80 °C |
Size N5 (profiled rail systems) | 2.1 |
Size A (profiled rail systems) | 60 |
Size A3 (profiled rail systems) | 9 |
Preload force | 149 |
Format | BLS - wide, long, standard height |
Size A2 (profiled rail systems) | 42 |
Self-aligning for compensation of misalignments | Without self-alignment |
Static torsional moment load capacity Mt0 footnote | Calculated values (derived from C, C0) |
Maximum permissible linear speed vmax | 3 |
Lubrication | With initial lubrication and without preservation |
Ball chain | Without ball chain (standard) |
Size N3 (profiled rail systems) | 4.5 |
Footnote static load capacity C0 | Calculated values acc. to DIN 636, part 2 |
Pitch T guide rail | 40 |
Size K (profiled rail systems) | 4 |
Height of runner block with guide rail | 16 |
Static load rating C0 | 14085 |
Dynamic torsional moment load capacity Mt | 151 |
Size B2 (profiled rail systems) | 77.5 |
Size B (profiled rail systems) | 74.5 |
Note: Maximum permissible speed vmax | Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. |
Preload class | C1 - Low preload |
Static longitudinal moment load capacity ML0 footnote | Calculated values (derived from C, C0) |
Seal | N and longitudinal seal |
Size B1 (profiled rail systems) | 57.6 |
Size H (profiled rail system) | 16 |
Size V1 | 4.7 |
Productgroup ID | 17 |
Accuracy class | P - Precise |
Size B with tolerance (profiled rail systems) | 74,5 mm |
Dynamic longitudinal moment load capacity ML footnote | Calculated values (derived from C, C0) |
Permissible ambient temperature (max) | |
Dynamic longitudinal moment load capacity ML | 66.1 |
Size S2 (profiled rail systems) | M4 |
Permissible ambient temperature (min) | |
Static torsional moment load capacity Mt0 | 285.2 |
Note: Max. acceleration amax | Only with preloaded systems. For non-preloaded systems: amax = 50 m/s2 |
Runner block or guide rail | Runner block |
Width of runner block | 60 |
Size T1 min (profiled rail systems) | 6 |
Dynamic torsional moment load capacity Mt footnote | Calculated values (derived from C, C0) |
Length of runner block | 74.5 |
Linear guide type | Miniature ball rail system |
Dynamic load capacity C | 7460 |
Static longitudinal moment load capacity ML0 | 125 |
Size E1 (profiled rail systems) | 45 |
Internal product information | For low-friction seal (Mini) without longitudinal seal |
Size H1 with longitudinal seal (profiled rail systems) | 12.65 |
Weight | 0.225 |
Nominal size | 15 |
Size H1 (profiled rail systems) | 12 |
