TENSION END MKR-065

Manufacturer: Bosch Rexroth

Material #: R039013001

Model : TENSION END MKR-065

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

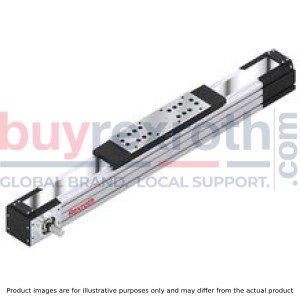

The Bosch Rexroth TENSION END MKR-065 (R039013001) is a state-of-the-art linear module designed for high-performance applications requiring precise linear movements. This model is part of the latest product generation MKXXXXNN, which exhibits improved performance features while maintaining compatibility with previous series. The structural design of the MKR-065 includes an extremely compact aluminum profile capable of lengths up to Lmax, ensuring versatility in various applications. It integrates a high-performance Rexroth Ball Rail System for smooth and accurate guidance and a wide toothed belt that provides high drive torques and rigidity. The carriage, crafted from aluminum, offers T-slots or threaded holes for attachments and centering holes for precise installation. For protection and maintenance, the MKR-065 comes with sealing strips and individual lubrication options suitable for onepoint lubrication systems. The product boasts a variety of lubrication variants such as LSS (initial factory lubrication), LPG (corrosion prevention without initial greasing), LCF (for connection to central liquid grease lubrication systems), and LCO (for oil lubrication systems). Additionally, the integrated IMSA measuring system enhances accuracy without requiring additional space or complex mounting procedures. This system allows for easy servicing with replaceable Runner Block, Scanner, and Guide Rail components. Attachments and accessories compatible with the MKR-065 include sensors, extension cables, switching lugs, cable ducts made from aluminum profile, clamping fixtures, sliding blocks, connecting shafts, and connection technology tailored for Linear Motion Systems. In summary, the Bosch Rexroth TENSION END MKR-065 Linear Module is engineered to deliver high-speed movement of large masses with precision thanks to its robust design featuring an integrated Ball Rail System with belt drive. It offers flexible configuration options through its versatile structure and extensive attachments program along with advanced lubrication variants to meet diverse application requirements.

$215.51 USD

Availability: 3 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as June 27, 2024 when ordered in

Protection of the guideway and drive components by sealing strip (excluding MKK-165) Idler (non-drive) end enclosure: with integrated belt-tensioning system. The belt pulley system is equipped with ball bearings that have lifelong lubrication The Rexroth Ball Rail System features one-point lubrication from both sides; one-point lubrication is only suitable for grease lubrication with a manual grease gun Individual lubrication versions for connection to one-point lubrication systems (only for product generation 3) Attachments are fastened to the carriage using T-slots or threaded holes Ball Guide Rail with corrosion-resistant coating, Ball Runner Block made of corrosion-resistant steel (only for product generation 3) Absolute position measuring system IMS-A directly integrated into the guide system (for MKR-080 and MKR-110, product generation 3) With planetary gearbox with various gear ratios and versions for optimizing external load to motor inertia. Servo motor with multi-turn encoder, 1-cable or 2-cable connection, with or without holding brake Magnetic field sensors can be mounted without additional attachments directly onto the profile body (only for product generation 3) Switch (proximity or mechanical), cable duct, socket-plug and extension cable Extensive accessories for connection and clamping elements and connecting shafts Nameplate with technical parameters for easy start-up

The new product generation 3 (MKX-XXX-NN-3) of the Rexroth Linear Modules is based on the consistent further development of the previous series. The usual Rexroth performance features have been improved once again with consideration of backward compatibility.

Rexroth Linear Modules of product generation 2 (MKX-XXX-NN-2) are precise, ready-to-install guide systems with high-performance features in compact dimensions.

Product description MKR-xxx-NN-3

Structural design

Ready-to-install Linear Modules in any length up to Lmax Extremely compact aluminum profile with integrated Rexroth Ball Rail Systems High-performance toothed belt in the largest possible width for high drive torques with simultaneously high rigidity Carriages made of aluminum with T-slots or threaded holes and with centering holes in each case Sealing strip (plastic cover strip for MKR-065, corrosion-resistant steel strip for MKR-080 and MKR-110) Individual lubrication versions for connection to one-point lubrication systems

Attachments (accessories program)

Sensors and extension cables Switch (proximity or mechanical) Switching lug Socket and plug Cable duct made of aluminum profile Clamping fixtures and sliding blocks Connecting shafts Connection technology for Linear Motion Systems

Example variants

1)	One drive journal, long carriage with thread
2)	Two drive journals, long carriage with T-slots
3)	Planetary gearbox with motor, long carriage with T-slots

Integrated Measuring System

The IMS-A measuring system offers the following advantages:

No additional space required. No external mounting surfaces required for the measuring system. No measurement inaccuracies due to parallelism offset between the measuring system and the guide system. Full integration of the measuring system components into the guide means no complex mounting or tuning work is needed. The Runner Block, Scanner and Guide Rail with scale can be replaced individually during servicing. Interfaces: HIPERFACHE or DRICE-CLiQ. Connecting cable directly on the side of the carriage.

Material pairing

ALST:

Frame, carriage and end enclosures made of anodized aluminum (AL) Ball Guide Rail and Ball Runner Block made of antifriction bearing steel (ST) Deep-groove ball bearing of the drive mechanism (belt pulleys) made of antifriction bearing steel

ALCR:

Frame, carriage and end enclosures made of anodized aluminum (AL) Ball Guide Rail made of antifriction bearing steel with corrosion-resistant coating, matte-silver finish, hard chrome plated (Resist CR). Ball Runner Block made of corrosion-resistant steel (Resist NR) Deep-groove ball bearing of the drive mechanism (belt pulleys) made of antifriction bearing steel

Lubrication variants

LSS: (Initial lubrication done at the factory)

MKR-065, MKR-080, MKR-110:

Grease lubricant Dynalub 510, NLGI grade 2 lithium-based high-performance grease according to DIN 51818 (KP2K-20 according to DIN 51825) Initial standard greasing done at the factory, suitable for normal environmental conditions. Simple relubrication via manual grease gun.

LPG: (Corrosion prevention, no initial lubrication)

Linear Module without initial greasing done at the factory. Ball Rail System, only with corrosion prevention. Basic lubrication required

LCF: (prepared for connection to central lubrication systems with liquid grease)

for liquid grease, NLGI grade 00 lithium-based high-performance grease according to DIN 51818 (GP00K-20 according to DIN 51826) Only use liquid grease lubrication with single-line total-loss lubrication systems via piston distributors. Basic lubrication required

LCO: (prepared for connection to central lubrication systems with oil)

Ball Runner Block with integrated non-return valves Only use oil lubrication with single-line total-loss lubrication systems via piston distributors. Basic lubrication required

Product description MKR-xxx-NN-2

Linear Modules with Ball Rail System and belt drive for high speeds and high demands on the guideway. The integrated, clearance-free Rexroth Ball Rail System makes it possible for large masses to be moved at high speed thanks to high load ratings and optimal travel.

Structural design

Ready-to-install Linear Modules in any length up to Lmax Extremely compact aluminum profile with integrated Rexroth Ball Rail Systems High-performance toothed belt (AT profile) Carriages made of aluminum, with T-slots or threaded holes (depending on the size) Cover with plastic strip for MKR-040 and the toothed belt for MKR-165

Attachments

Switch (proximity or mechanical) Socket and plug Cable duct made of aluminum profile

Attachments (accessories program)

Clamping fixtures and sliding blocks Connecting shafts Connection technology for Linear Motion Systems Sensors and extension cables

Structure and attachments

Structural design

1 Drive end enclosure

2 Belt drive (under cover)

3 Carriage with runner block

4 Sealing strip

5 Strip fixing

6 Non-drive end enclosure

7 Frame

Attachments

8 Cable duct

9 Switching cam

10 Proximity switch

11 Mechanical switch

12 Socket/plug

13 Magnetic field sensor

Maximum values for each size

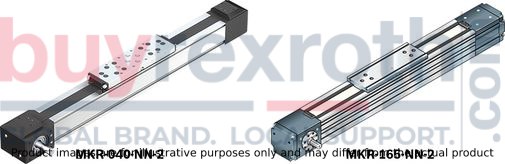

Size		MKR-040-NN-2	MKR-065-NN-3	MKR-080-NN-3	MKR-110-NN-3	MKR-165-NN-2
C	N	3750	16000	38000	46500	84100
Mt	Nm	22.3	154	487	666	1800
ML	Nm	129.5	569	2470	2790	5130
Mx max	Nm	12	62	192	264	720
My max	Nm	65	227	990	1120	2130
Mz max	Nm	65	227	990	1120	2130
Fy max	N	1875	6400	15200	18600	34100
Fz1 max	N	1875	6400	15200	18600	34100
Fz2 max	N	1875	6400	15200	18600	34100
Lmax	mm	2500	5900	6000	9400	12000
amax	m/s²	50
vmax	m/s	3	5

	Maximum values depends on the selected configuration.

Legend

Symbol	Description	Unit
C	Dynamic load capacity	N
Mt	Dynamic torsional moment load capacity	Nm
ML	Dynamic longitudinal moment load capacity	Nm
Mx max	Maximum admissible torsional moment around the x-axis	Nm
My max	Maximum admissible torsional moment around the y-axis	Nm
Mz max	Maximum admissible torsional moment around the z-axis	Nm
Fy max	Maximum dynamic load in y-direction	N
Fz1 max	Maximum dynamic load in z-direction	N
Fz2 max	Maximum dynamic load in z-direction	N
Lmax	Maximum length	mm
amax	Maximum acceleration travel	m/s2
vmax	Maximum permissible speed	m/s

Mounting

General information

The linear modules are mounted using various fastening elements:

Clamping fixtures Sliding blocks for size -110 and up Square nuts Spring nuts Screws for T-slots as per DIN 787 (no picture).

Length depends on base.

When mounting Linear Modules, please note the maximum tightening torques listed in the table.

Mounting with clamping fixtures

Mounting with sliding blocks

1)	85 (size .. -110) 120 (size -165)

Size	A	B
Size	(mm)	(mm)
-040	52,2	65,5
-065	81,0	95,0
-080	96,0	110,0
-110	132,0	150,0
-165	192,0	218,0
-145	172,0	198,0

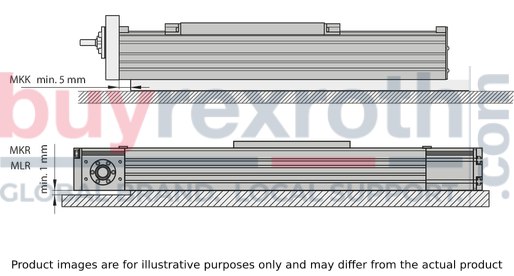

Do not support the linear module on end enclosures, end blocks or on end plates!

The frame is the load-bearing part!

Tightening torques of fastening screws

with friction factor 0.125 strength class 8.8

	8.8	M4	M5	M6	M8	M10	M12
	(Nm)	2,7	5,5	9,5	23	46	80

Switching system overview

1 Socket and plug

2 Mechanical switch with attachments

3 Proximity switch

4 Switching cam

5 Mounting duct/cable duct

6 Magnetic field sensor with fixed potted cable

(Reed/Hall sensor (for fastening duct))

7 Reed/Hall sensor with plug and sensor mount

7a: Sensor (Hall sensor option 59 or reed sensor option 58)

7b: Sensor mount including set screws (loose) and square nut

7c: Cable holders (3 pieces) including set screw (loose)

7d: Plug

8 Magnetic switch

9 Clamping screw

10 Sliding block

Switch mounting arrangement MKK/MKR-040-NN-2

Switch mounting arrangement with magnetic field sensor and mounting duct

The switch activator is a magnet that is built into the carriage (no switching cam necessary). The switch activation points can be positioned anywhere along the stroke.

Version: Hall sensor (PNP NC) or reed sensor (change-over contact)

Notes for mounting:

The magnetic field sensors are pushed into the top T-slot in the cable duct and fixed with set screws. The cables are routed along the side of the T-slot for switches.

Switch mounting with magnetic field sensor, connector and sensor mount

Sensor mounting kit

The switch activator is a magnet that is integrated in the carriage (no switching angle needed). The switching positions can be freely configured via the stroke.

General mounting instructions:

The sensor mounting is only permitted on one side of the linear module (right or left) and is only done after the linear module has been attached to the mounting base. For a description of the mounting and determination of the switching positions, see the instruction manual for the linear modules. See "Accessories" section for technical data

Switch mounting MKK/MKR/MLR-xxx-NN-x

MKK/MKR-xxx-NN-3

MKK/MKR/MLR-xxx-NN-x

Socket and plug, cable duct

Attach the socket to the side with the most switches. The socket and plug are not pre-wired. The variable sliding attachment allows switching positions to be optimized during start-up. The plug can be mounted in three directions.

Cable duct

The cable duct is fastened in the T-slots on the side of the frame. Fastening screws widen the profile and ensure that the cable duct is securely mounted.

See the illustration for the position of the slot.

The cable duct will accommodate up to two cables for mechanical switches and three cables for proximity switches.

Fastening screws and cable grommets are included.

Mounting examples of switches

Determination of the switching position

Switching distance: The switching distance is the distance between the carriage center (TM) and the zero point (0) when a switch is actuated (indicated in mm). Example of a mechanical limit switch (assuming the zero point is at L/2):

Maximum switching distance = 0.5 x (max. travel distance) – excess travel = 0.5 x effective stroke

For safe operation of the linear module the excess travel must be greater than the braking path.

For MKR... and MLR...: The acceleration travel sa can be assumed as the reference value for the braking distance.

For MKK...: In most cases, the following is sufficient as a guideline value for the excess travel (braking path): Excess travel = 2 x screw lead P.

Note the smallest possible switching distance (determined by attachments):

mechanical-mechanical = 60 mm; mechanical-proximity = 45 mm; proximity-proximity = 28 mm.

for MKR-145: mechanical-mechanical = 62 mm; mechanical-proximity = 49 mm; proximity-proximity = 35 mm

The switches as well as socket with plug are fixed in the upper T-slots of the frame and actuated by a switch tab on the carriage.

Mounting side of the switches:

1)	links (L)
2)	right (R)
3)	Direction of travel
4)	0.5 x stroke
5)	Excess travel
6)	0.5 x max. travel path

1)	Sensor slot MKK/MKR-xxx-NN-3

Clamping fixtures for Linear Modules

CAD data

Service

Sliding blocks and springs for Linear Modules

CAD data

Service

Anchor strips for Linear Modules

Steel, black finished All anchor strips can be fixed for a vertical installation position

CAD data

Service

Centering rings for Linear Modules

CAD data

Service

Square nuts for Linear Modules

CAD data

Service

Cable duct

Service

CAD data

Steel connecting shafts with disk-pack coupling for Linear Modules MKR 080, 110, 165

Compensation of misalignments Backlash-free and torsionally stiff Bridge large distances between axes Dynamically balanced as per VDI 2060

CAD data

Service

Connecting shafts with membrane coupling for Linear Modules MKR 040, 065, 080, 110

Compensation of misalignments Backlash-free and torsionally stiff Bridge large distances between axes Clamping hub (installation and removal without shifting the aligned axes) Dynamically balanced as per VDI 2060

CAD data

Service
