CONNECTING PLATE CKR 12-90 K BG

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

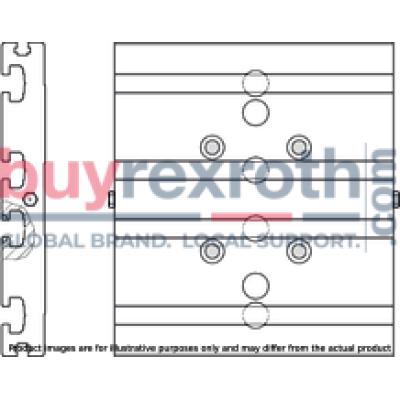

The Bosch Rexroth CONNECTING PLATE CKR 12-90 K (R037530016) is an integral mechanical accessory designed for seamless integration with linear axes. This product is specifically crafted to facilitate the attachment of various components using sliding blocks, enhancing the modularity and versatility of motion systems. The connection plate is meticulously engineered to allow for lubrication of both the ball rail system and the ball screw assembly, ensuring smooth operation and longevity of the linear motion components. This feature is particularly beneficial when used with lubrication versions LSS and LPG. With a focus on compatibility and ease of installation, the connection plate comes in a standard size A, adhering to Bosch Rexroth's precise product group specifications. The dimensions including Size E, Size H, Size D, Size C, and nominal size are optimized for a perfect fit with corresponding carriages and components within the CKR series. The package includes not only the connection plate itself but also all necessary mounting accessories required for secure fastening to the carriages. This attention to detail guarantees that users have everything needed for a straightforward assembly process right out of the box. Overall, this Bosch Rexroth connecting plate stands out as a robust solution for expanding or customizing linear axis applications. Its design ensures that it can be integrated effectively into a variety of setups requiring precise motion control while maintaining system integrity through proper lubrication access points.
