CONNECTING PLATE CKR 12-90 BG

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

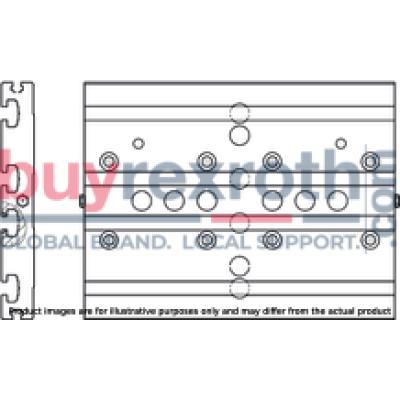

The Bosch Rexroth CONNECTING PLATE CKR 12-90 (R037530011) is a meticulously engineered mechanical accessory designed for linear axes. This specific model serves as a critical component in the assembly and fastening of attachments with sliding blocks, ensuring a secure and precise connection to the carriages. Its robust construction allows for the lubrication of both the ball rail system and the ball screw assembly directly through the connection plate, which is a significant feature for maintaining smooth operation and longevity of the linear motion systems. With its nominal size tailored to fit specific requirements, this connecting plate is categorized under Size A in Bosch Rexroth's product group identification system. The outer diameter, denoted as Size E, along with other dimensional parameters such as Size H and Size D, are all optimized to provide a perfect fit and reliable performance when integrated with compatible components. The product package includes not only the connection plate itself but also mounting accessories essential for its installation. These accessories facilitate an effortless and secure attachment process onto the carriages of linear axes. The weight specification, indicated as Size C, ensures that it contributes minimally to the overall mass of the system while maintaining structural integrity. Designed to meet high standards of quality and reliability, this Bosch Rexroth connecting plate is an indispensable part of constructing efficient linear motion solutions where precision and durability are paramount. It embodies expert design for industrial applications requiring meticulous coordination between various mechanical elements within linear motion systems.
