POSITIONING UNIT PE 5/L-T

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

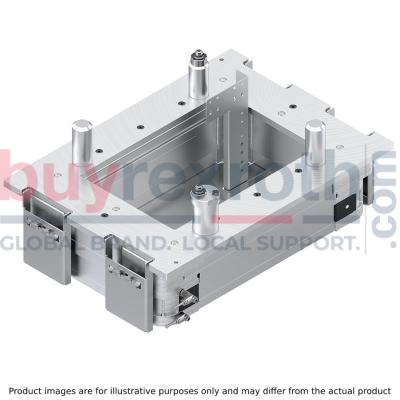

The Bosch Rexroth POSITIONING UNIT PE 5/L-T (3842998049) is a sophisticated component designed to enable precise positioning of workpiece pallets within manual or automated processing stations. It is specifically tailored for use with all WT workpiece pallets and offers high positioning accuracy, with a tolerance of ±0.1 mm in both the x and y directions. The unit requires installation from above and features a lift over the transport level, providing seamless integration into conveyor systems. This positioning unit can withstand permissible vertical process forces up to 400 N when centered, which includes the weight of the WT workpiece pallet. It is compatible with ST XH and ST H conveyor sections but not suitable for ST XHFR or ST HFR models. The required compressed air connection ranges between a specified minimum and maximum pressure, and it includes a pneumatic push-in fitting of 6 mm for easy connection to air supply lines. For optimal stability during operation, if installed within an ST H section, it is recommended that supporting legs are placed directly in front and behind the PE 5/L-T unit. Additionally, this unit can accommodate higher process forces up to 1200 N with direct support upon request. The product comes fully assembled and includes all necessary fastening materials for mounting in ST XH conveyor sections as well as a stop kit for VE2 D and VE2 D variants. While lateral guide covers, protective sleeves, various VE stop gates, and an SH UH switch bracket are listed as recommended accessories, they are essential for certain functionalities such as position inquiry for the workpiece pallet on the PE LT. With its robust construction and precise operation capabilities, the Bosch Rexroth POSITIONING UNIT PE 5/L-T stands out as an essential component for enhancing efficiency in advanced material handling applications where exact positioning is crucial.
