POSITIONING UNIT PE 5/L

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

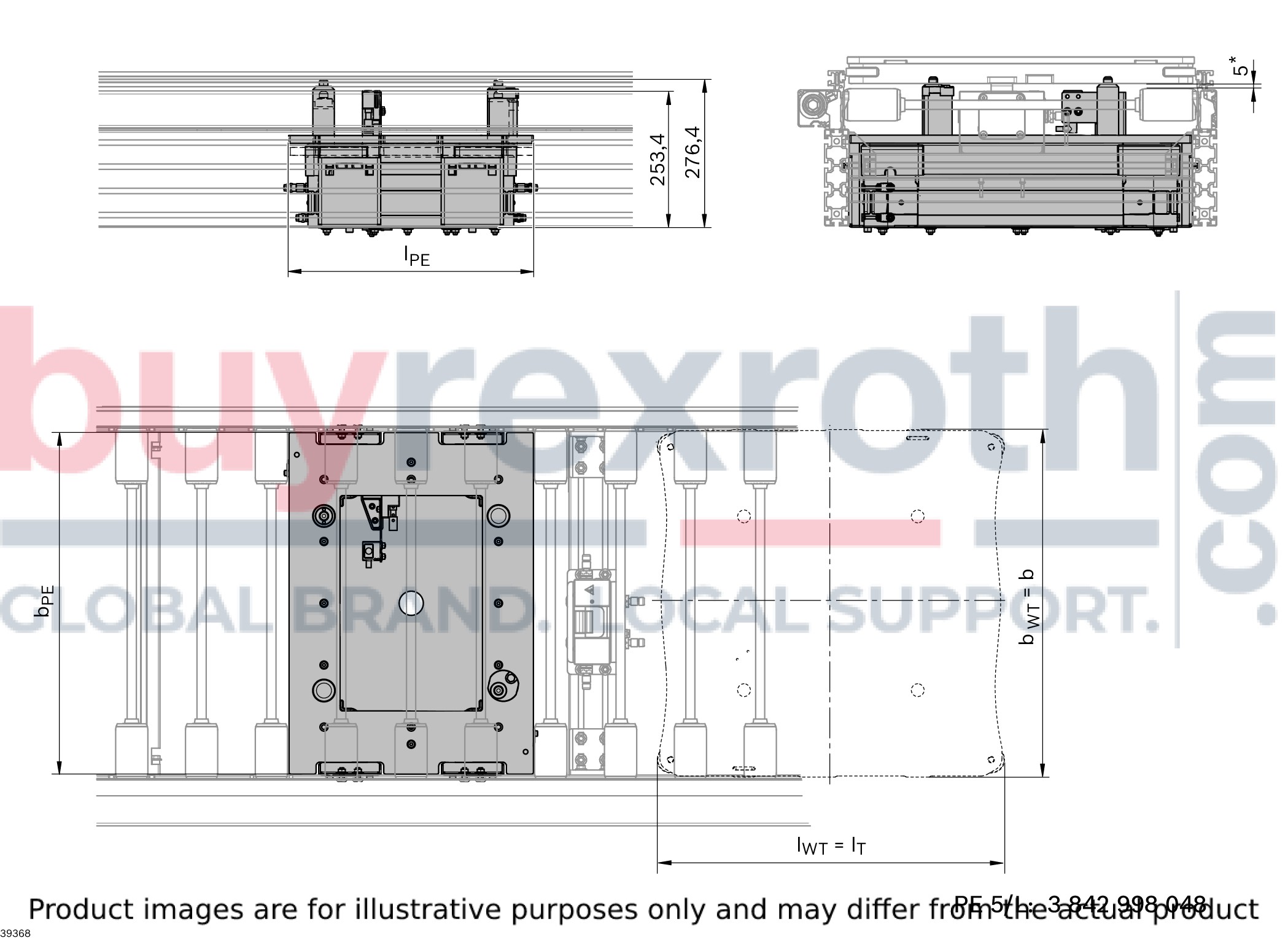

The Bosch Rexroth POSITIONING UNIT PE 5/L (3842998048) is a sophisticated component designed for precise positioning of workpiece pallets within manual or automated processing stations. This unit ensures high accuracy in the longitudinal conveyor system, boasting a positioning accuracy of ±0.1 mm in both x and y directions. It is compatible with all WT workpiece pallets, but installation is exclusively from above, ensuring a smooth integration into existing systems. With the capability to handle a permissible vertical process force with center load up to 400 N, this positioning unit can accommodate varying weights of workpiece pallets efficiently. The robust design is suitable for use with ST XH and ST H conveyor sections, though it's not intended for ST XHFR or ST HFR models. For optimal performance, the unit requires a compressed air connection between 4 to 6 bar and incorporates a pneumatic push-in fitting sized at 4 mm. In terms of structural placement, when assembling within an ST H section, it's recommended to position legs directly in front and behind the PE 5/L to sustain the permissible vertical process forces effectively. Additionally, higher process forces up to 1200 N can be achieved through direct support on request. The PE 5/L comes fully assembled for convenience and includes all necessary fastening materials for mounting within ST XH conveyor sections. Its dimensions are tailored for seamless integration into transport systems with specified track widths and lengths ensuring compatibility and ease of setup. Overall, this positioning unit from Bosch Rexroth is an essential component for any operation seeking precision alignment and handling of workpieces within their conveyor systems while maintaining high throughput rates and operational efficiency.
