SECTION TUBE D28L 50X6070MM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

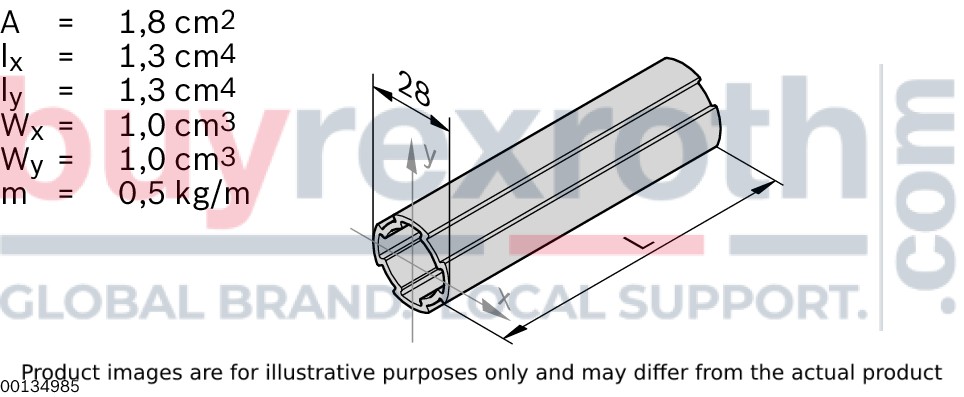

The Bosch Rexroth SECTION TUBE D28L 50X6070MM (3842557243) is an integral component of the EcoShape tubular framing system designed for versatility and reliability in constructing manual workstations, flow racks, and custom assembly structures. This anodized aluminum tube features a diameter of 28mm and a length of 6070mm, providing a sturdy framework for various applications. Its round profile is equipped with interfaces for attaching EcoShape connectors, ensuring a seamless integration within the modular system. The tube includes a slot that allows for the mounting of accessories from Bosch Rexroth's modular aluminum framing system, expanding its functionality. Additionally, it supports the attachment of a slide rail which can be easily clipped on to create simple conveyor tracks or manual slide sections, enhancing the adaptability of the structure to different operational needs. Safety is also addressed with this product; it comes with an impact protection device suitable for both D and DL round tubes. The design incorporates an antitorsion element to maintain joint integrity and includes a positive interlocking connection to prevent accidental disassembly. All connectors compatible with this model are designed to facilitate ESD-conductive systems, making them ideal for electronics assembly environments where electrostatic discharge is a concern. The integrated pokayoke system simplifies connector installation while ensuring secure connections every time. Key technical specifications include the moment of resistance in both y-direction (Wy) and x-direction (Wx), area moments of inertia in y-direction (ly) and x-direction (lx), as well as the product's mass (m). The delivery unit comes as standard-length profiles with cover caps available for both ends of the tube. Overall, this SECTION TUBE from Bosch Rexroth offers robust construction and flexibility required for efficient material handling solutions and ergonomic workstation designs within various assembly processes.
