3842555610

LIFTING WHEEL D80 ROTATABLE PEDAL

Manufacturer: Bosch Rexroth

Material #: 3842555610

Model : LIFTING WHEEL D80 ROTATABLE PEDAL

$143.17 USD

More are expected on December 24, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 24, 2024 when ordered in

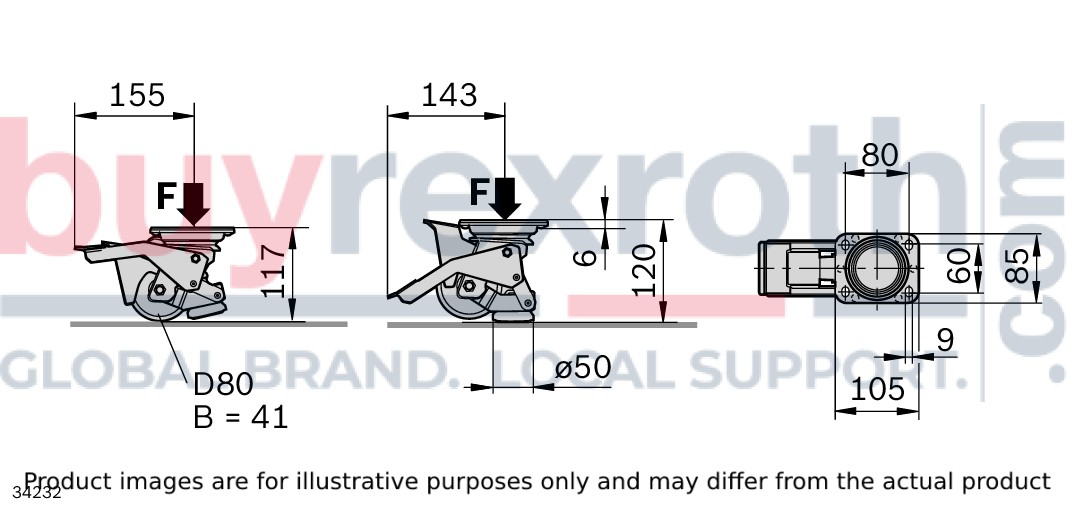

LIFTING WHEEL D80 ROTATABLE PEDAL

Lifting wheel - Rotatable Pedal

Unpacked Weight: 2 kg

The locking lever can be moved under the frame if necessary
Steerable lifting wheel
The wheel turns into a stable base simply by engaging the stop lever
The locking lever moves with the wheel

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Packaging unit	1
Force F	2000
ESD	yes
Total height	120
Material	PA 6
Weight	2
Required accessories	Screw M8x20 (ISO 4762), washer A8 (DIN EN ISO 7089), locking washer 8 FSt for attaching to the screw-on plate,Screw-on plate, lifting wheel,Flange head screw similar to ISO 7380-2 10.9 M8x25, however, Torx 40 (tightening torque 25 Nm), T-nut 10 M8, central bolt M12 or S12 for fastening the screw-on plate at the profile frame
Material information	Wheel: PA 6, natural white, housing: Steel, galvanized
Profile slot	10
