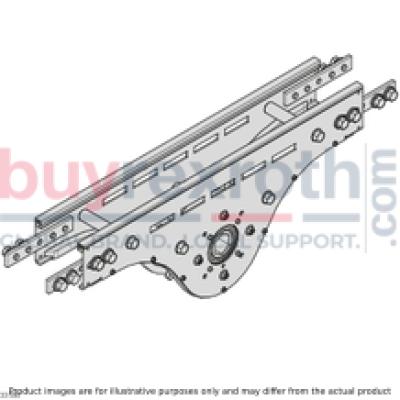

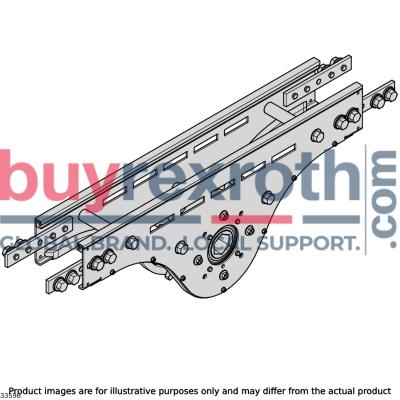

BASE UNIT 90+ CENTER

Manufacturer: Bosch Rexroth

Material #: 3842552941

Model : BASE UNIT 90+ CENTER

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 90+ CENTER (3842552941) is a versatile and robust center drive basic unit designed to integrate seamlessly into conveyor systems where space is at a premium at either end of the conveyor section. This unit can be easily converted into a fully functional center drive by adding the provided drive kit, making it adaptable for various industrial applications. The BASE UNIT 90+ CENTER features a reduced noise emission due to its slide rails that are guided in the head drive. The installation of the drive kit is flexible, allowing for motor mounting on either the right or left side. The unit includes a hexagonal hollow shaft as standard, which facilitates the driving of parallel conveyor sections or bridges. It boasts stainless steel ball bearings with seals on both sides and FDA-compliant grease filling, ensuring durability and compliance with strict hygiene standards. The side elements come with slots for attaching holders for lateral guides or similar components, enhancing its adaptability. With an effective sliding rail length and actual chain length that varies per specific application requirements, this base unit has been engineered to support a maximum chain tensile force of Fmax N and can handle conveying lengths up to m. It operates with a chain return on the underside of the profile and offers conveying speeds of vN m/min, with other speeds available upon request. Users are advised that since there's no length compensation chain bag present, regular checks and adjustments to the chain length may be necessary. The scope of delivery includes all necessary fastening materials and comes assembled, with a profile connector enclosed for ease of installation. The construction materials include non-rusting steel for housing and connectors, PA for chain wheel and guide, further ensuring longevity and reliability in various operational environments. An assembly module is required when assembling the chain onto this BASE UNIT 90+ CENTER by Bosch Rexroth.

$1,714.69 USD

More are expected on February 11, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 11, 2025 when ordered in

BASE UNIT 90+ CENTER

Basic unit center drive VFplus 90

Unpacked Weight: 4.28 kg

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Side elements with slot to attach holders for lateral guides, or similar

The center drive basic unit is used if the available space is limited at the ends of the sections. It is quickly turned into a center drive with variable motor mounting position by adding the drive kit

Size: 65-120 Chain return on the underside of the profile Conveying speed: vN = 2 ... 60 m/min, other speeds available on request Permissible chain tensile force: Fmax = 600 N Max. conveying length: 7 m Because no length compensation (chain bag) is present, the chain length must be checked regularly and shortened if necessary Recommendation: No accumulation up to 1000 mm after the return unit An assembly module is required for assembling the chain

Drive kit VFplus

Base unit center drive + drive kit = a complete center drive
Reduced noise emission due to slide rails guided in the head drive
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	1,1385
Actual chain length	2x 514
Weight	4.28
Scope of delivery	Incl. fastening material
Delivery information	Assembled, profile connector enclosed
Size [b]	90
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA,Chain guide: PA,Connector: Non-rusting steel 1.4301,Hexagonal shaft: PA,Ball bearing: Non-rusting steel 1.4301/FDA

	Material
Basic unit center drive VFplus 65	Housing: stainless steel Chain wheel: PA Chain guide: PA Connector: stainless steel Hexagonal shaft: PA Ball bearings: stainless steel/FDA
Basic unit center drive VFplus 90
Basic unit center drive VFplus 120

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
