GUSSET 45X90 SILVER SET

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

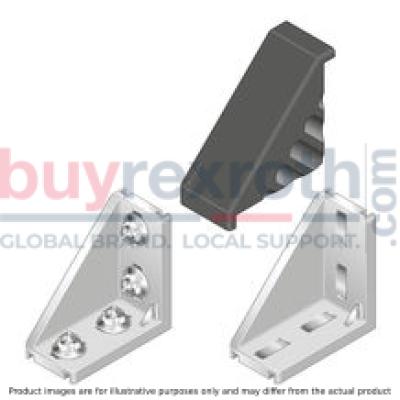

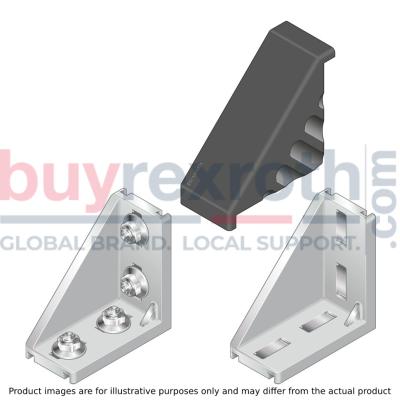

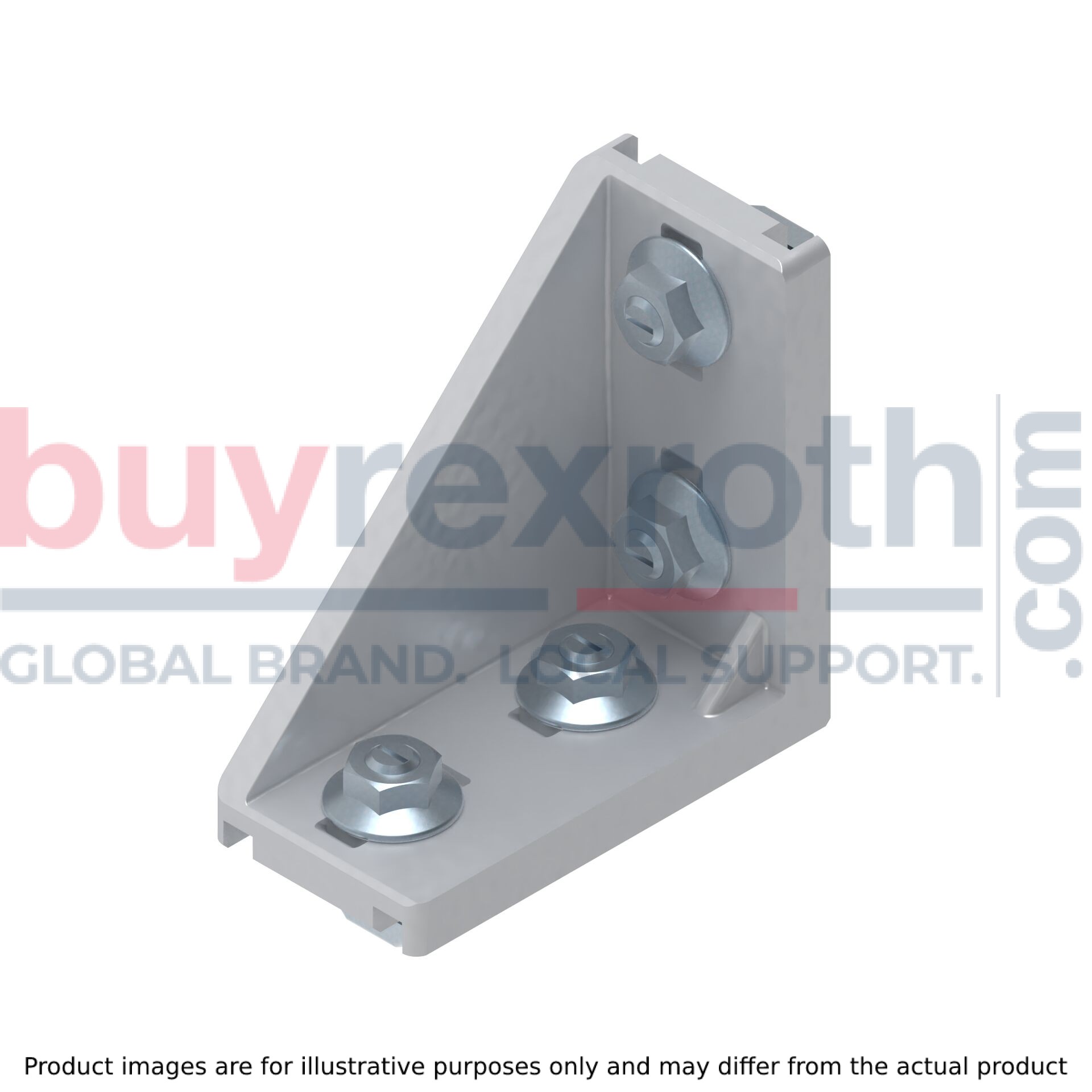

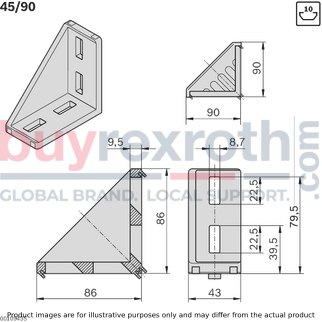

The Bosch Rexroth GUSSET 45X90 SILVER SET (3842551607) is a high-quality connection element designed to facilitate rapid and precise assembly within various structural applications. This bracket set falls under the designLINE product group, known for its special silver paint finish in RAL color, which not only provides an aesthetically pleasing high-quality design but also ensures durability. The gusset features centering lugs that aid in alignment and prevent rotation during installation, with the added convenience of being easily removable for alternative assembly methods, such as attaching to plates or perpendicular to the profile slot. Constructed from die-cast aluminum that has been vibratory ground and painted, the GUSSET 45X90 SILVER SET is both sturdy and visually appealing. It comes equipped with a cover cap available in signal gray (RAL) or black ESD (RAL), which serves to protect against dirt accumulation. The bending moment and torsional moment specifications indicate the bracket's capability to withstand mechanical stresses, making it suitable for robust applications. The dimensions of this bracket are tailored to fit profile slots efficiently, while its white aluminum color (RAL) seamlessly integrates into various design schemes. The set includes fastening material consisting of T-bolts M8 and flange nuts M8, ensuring secure attachment without the need for additional profile finishing. With a weight specification provided, users can account for the bracket's contribution to overall system mass. Overall, the Bosch Rexroth GUSSET 45X90 SILVER SET is an essential component for those requiring reliable and precise connection elements with an added touch of design sophistication. It is particularly suited for constructing frames, supports, or any structure that benefits from enhanced visual appeal without compromising on strength or functionality.
