PROXIMITY SWITCH M12-M12 SN=4MM L=45

Manufacturer: Bosch Rexroth

Material #: 3842549814

Model : PROXIMITY SWITCH M12-M12 SN=4MM L=45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth PROXIMITY SWITCH (3842549814) is a high-precision sensor designed for detecting the position of workpiece pallets and inquiring about positions in lift transverse units, positioning units, and other similar applications. This M12 threaded proximity switch boasts a nominal switching distance (Sn) of 4mm and an overall length (L) of 45mm, ensuring compactness and ease of integration into various systems. With its Normally Open (NO) switching function, the sensor operates on DC voltage and can function within a specified ambient temperature range. The protection class IP rating ensures that the device is safeguarded against ingress of solid objects and liquids, making it suitable for diverse operating environments. The switch also features a mechanical installation that allows for flush mounting. Equipped with an LED function display for clear status indication, the proximity switch maintains an efficient switching frequency. It has a PNP switching output and can handle an operating current within its defined range. The housing is made from CuZn with a nickel-free coating to prevent corrosion, while the active surface is made from LCP, contributing to its durability. This proximity switch conforms to cULus, CE, EAC standards, ensuring compliance with international safety requirements. The required accessories for proper installation include a Switch Bracket which aids in securing the sensor in place. The Bosch Rexroth PROXIMITY SWITCH is engineered to offer reliable sensing solutions across various applications where precise detection of object presence or positioning is critical. Its robust design and conformance to standards make it an ideal choice for ensuring operational accuracy in automated environments.

$78.01 USD

Availability: 363 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 26, 2024 when ordered in

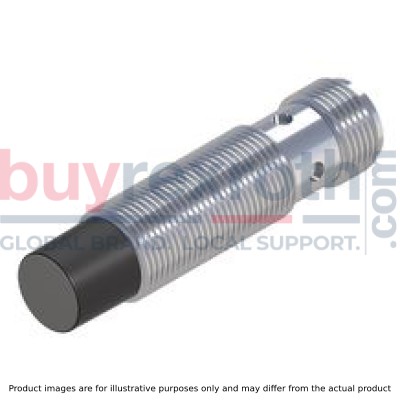

PROXIMITY SWITCH M12-M12 SN=4MM L=45

M12x45 sensor

Unpacked Weight: 0.02 kg

Detection of the position of a workpiece pallet, position sensing for lift transverse units, lift positioning units and lift rotate units.

Sensor application matrix

	Diameter with push-in fitting	Sensor
	M12 with M12	3842557633	3842501548	3842549814	3842558990	3842559541 ¹)
	M12 with M8	3842549813	3842549812	3842549811
	M8 with M8						3842551761
Position inquiry	AS 2/C-100, AS 2/C-250						X
	AS 2/C-400, AS 2/C-700	X
	AS 2/R-300, AS 2/R-700						X
	AS 2/R-1200, AS 2/R-2200	X
	AS 2/R-V-1200, AS 2/R-V-2200	X
	BS 2/R-300, BS 2/R-700						X
	BS 2/C-100, BS 2/C-250						X
	BS 2/R-H	X
	BS 2/R-V-1200	X
	BS 2/C-H	X
	CS/C						X
	EQ 2/TR			X
	EQ 2/TR-90			X
	EQ 2/T			X
	EQ 2/TE			X
	HQ 2/S			X
	HQ 2/O			X
	HQ 2/T			X
	HQ 2/U			X
	HQ 2/U2			X
	HQ 2/U-H			X
	HQ 2/C-H				X
	HQ 2/G-H				X
	HD 2			X
	HD 2/H			X
	KU 2/...						X
	PE 2			X
	PE 2/X, PE 2/H, PE 2/XP				X
	HP 2/L			X
	HP 2			X
	VE 2 position inquiry						X
	VA 2/D-130			X
WT position inquiry	SH 2/S	X
	SH 2/ST				X
	SH 2/S-H	X
	SH 2/U				X
	SH 2/UV	X
	SH 2/U-H	X
	SH 2/EP	X
	WI/M		X
	WI 2 (horizontal installation)					X
	WI 2 (vertical installation)		X
	WI 2/H (horizontal installation)					X
	WI 2/H (vertical installation)		X
	WI 2/D (horizontal installation)					X
	WI 2/D (vertical installation)		X
	HQ 2/U-H			X
¹) Nur für horizontalen Einbau bei den Wippen WI 2, WI 2/H und WI 2/D

Recognizing the position of a workpiece pallet
Stop gate / positioning unit position sensing
Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Thread size	M12 x 45
Switching function	Normally open (NO)
Operating voltage DC	10 ... 30
Ambient temperature [T]	-25 ... +70 °C
Push-in fitting	M12x1
Nominal switching distance [Sn]	4
Length [L]	45
Switching frequency	300
Protection class	IP67
Operating current	200
Mechanical installation	Flush
Function display	LED
Switching output	PNP
Weight	0.02
Notice	IEC 60947-5-2
Required accessories	Switch Bracket
Material information	Housing: CuZn, nickel-free coating,Active surface: LCP
Conformity	cULus,CE,EAC

No.		3842549814	3842557633	3842501548	3842558990	3842559541
Dimension	mm	M12x45	M12x45	M12x70	M12x60	M12x65
Protection type		IP67	IP68	IP68	IP68	IP67
Material entry		Housing: CuZn; nickel-free coating Active surface: LCP	Housing: CuZn; nickel-free coating Active surface: LCP	Housing: Stainless steel, non-rusting Active surface: LCP	Housing: CuZn; nickel-free coating Active surface: LCP	Housing: Brass Active surface: LCP
Max. operating temperature	°C	-25 ... +70	-25 ... +70	-40... +85	-25 ... +70	0 ... +60
Push-in fitting		M12x1	M12x1	M12x1	M12x1	M12x1
Overall length	mm	45	45	70	60	65
Rated sensing range	mm	4	8	4	8	8
Switching frequency	Hz	300	500	2500	1000	300
Operating current	mA	200	200	200	200	200
Mechanical installation		Flush	Not flush	Not flush	Not flush	Flush
Function display		LED	LED	LED	LED	LED
Switching output		PNP	PNP	PNP	PNP	PNP
Switching function		Normally open (NO)	Normally open (NO)	Normally open (NO)	Normally open (NO)	Normally open (NO)
Operating voltage	V DC	10 … 30	10 ... 30	10 … 30 V DC	10 ... 30	10 ... 30
Approvals		cULus, CE, EAC	cULus, CE, EAC	cULus, CE, EAC	cULus, CE, EAC	cULus, CE, EAC
Standard conformity		IEC 60947-5-2	IEC 60947-5-2	IEC 60947-5-2	IEC 60947-5-2	IEC 60947-5-2
