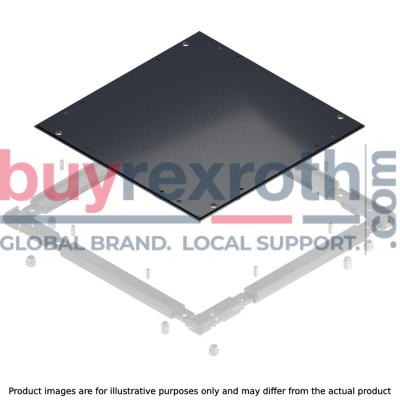

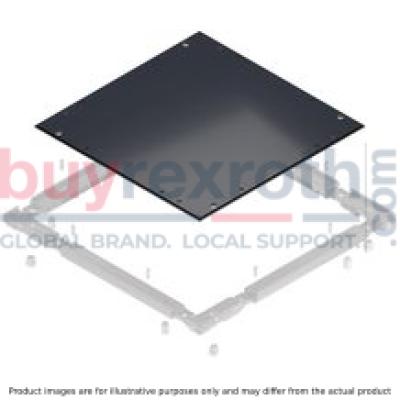

CARRYING PLATE 1200X800X12,7 ALU
Manufacturer: Bosch Rexroth
Material #: 3842548684
Model : CARRYING PLATE 1200X800X12,7 ALU
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CARRYING PLATE 1200X800X127 ALU (3842548684) is a robust and versatile component designed for the construction of custom workpiece pallets. This carrying plate is made from high-quality aluminum, ensuring both strength and lightness, with a thickness of 127 mm. The plate comes completely drilled and ready for assembly, facilitating a straightforward setup process.
With dimensions of 1200mm by 800mm, it is sizable enough to support a variety of product sizes and shapes. It boasts a flatness specification that guarantees the stability and uniformity necessary for precise operations. The carrying plate's design allows it to be seamlessly integrated with frame modules of WT workpiece pallets, making it an essential part of an efficient material handling system.
The aluminum construction not only provides a sturdy base for products but also contributes to the carrying plate's overall weight capacity. Its compatibility with RFID systems, as outlined in the RFID systems catalog, enables advanced tracking and data storage solutions to be incorporated into the workpiece pallet system.
This model code CARRYING PLATE 1200X800X127 ALU is intended for those looking to self-assemble their workpiece pallets with reliable materials that meet industry standards. The carrying plate's adaptability makes it suitable for various applications where precision and durability are key. Whether used in manufacturing or distribution contexts, this Bosch Rexroth carrying plate serves as an integral component in creating customized workpiece handling solutions.
$1,411.81 USD
More are expected on January 31, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 31, 2025 when ordered in
Carrying plate WT 2, AL 12.7 800/1200
Unpacked Weight: 32.6 kg
15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating 10 standard sizes in aluminum, 8 mm thick 13 standard sizes in aluminum, 12.7 mm thick You will find drilling plans for identification and data storage systems in the RFID systems catalog Can be combined with frame modules of WT 2 workpiece pallets
Carrying plates are used for self-assembly of WT 2 workpiece pallets using frame modules and fastening elements.
For self-assembly of workpiece pallets for product support |
Completely drilled and ready for assembly |
15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating |
10 standard sizes in aluminum, 8 mm thick |
13 standard sizes in aluminum, 12.7 mm thick |
You will find drilling plans for identification and data storage systems in the RFID systems catalog |
Can be combined with frame modules of WT 2 workpiece pallets |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
Plate thickness [dPL] | 12.7 |
Productgroup ID | 2 |
Dimension [d] | 643.5 |
Workpiece pallet total weight [mG] | 100 |
Dimension [a] | 108.5 |
Dimension [c] | 428.5 |
Flatness | 1.2 |
Material | Aluminum |
Weight | 32.6 |
Workpiece pallet width [bWT] | 800 |
Workpiece pallet length [lWT] | 1200 |
Steel carrying plate (4.8 mm)
No production drawing
Aluminum carrying plate (8 mm)
No production drawing
Aluminum carrying plate (12.7 mm)
No production drawing
No. |
Width of workpiece pallet |
Length of workpiece pallet |
Plate thickness |
Flatness |
Plate mass |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
bWT |
lWT |
dPL |
▢ |
mPL |
a |
aa |
b |
bb |
c |
cc |
d |
f |
g |
gg |
h |
hh |
i |
ii |
j |
k |
kk |
m |
mm |
n |
o |
oo |
p |
pp |
q |
r |
rr |
s |
t |
tt |
u |
|
mm |
mm |
mm |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
3842174311 | 160 | 160 | 4.8 | 0.3 | 0.9 | 124 | 84.5 | 45 | ||||||||||||||||||||||||||||
3842174313 | 160 | 240 | 4.8 | 0.3 | 1.4 | 204 | 84.5 | 45 | ||||||||||||||||||||||||||||
3842174321 | 240 | 240 | 4.8 | 0.3 | 2.1 | 204 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842174315 | 160 | 320 | 4.8 | 0.3 | 1.8 | 284 | 84.5 | 45 | ||||||||||||||||||||||||||||
3842174323 | 240 | 320 | 4.8 | 0.5 | 2.8 | 284 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842174331 | 320 | 320 | 4.8 | 0.5 | 4.3 | 284 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842174325 | 240 | 400 | 4.8 | 0.5 | 4.1 | 364 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842174333 | 320 | 400 | 4.8 | 0.6 | 5.3 | 364 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842174375 | 400 | 400 | 4.8 | 0.6 | 6.6 | 59.5 | 364 | 304.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||||||
3842174334 | 320 | 480 | 4.8 | 0.6 | 6.4 | 108.5 | 323.5 | 444 | 120.5 | 335.5 | 244.5 | 205 | ||||||||||||||||||||||||
3842174376 | 400 | 480 | 4.8 | 0.6 | 7 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842174381 | 480 | 480 | 4.8 | 0.8 | 9.3 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842174378 | 400 | 640 | 4.8 | 0.8 | 10.4 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842174383 | 480 | 640 | 4.8 | 1 | 12.3 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842523381 | 640 | 640 | 4.8 | 1 | 16.3 | 108.5 | 323.5 | 95.5 | 604 | 280.5 | 495.5 | 544.5 | 241 | 456 | 564.5 | 69 | 284 | 365 | 20 | 505 | ||||||||||||||||
3842524595 | 320 | 320 | 8 | 0.5 | 2.1 | 284 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842524594 | 240 | 400 | 8 | 0.5 | 2 | 364 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842524596 | 320 | 400 | 8 | 0.6 | 3.7 | 364 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842524598 | 400 | 400 | 8 | 0.6 | 3.4 | 59.5 | 364 | 304.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||||||
3842524597 | 320 | 480 | 8 | 0.6 | 3.7 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 244.5 | 205 | ||||||||||||||||||||||
3842524599 | 400 | 480 | 8 | 0.6 | 4 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842524602 | 480 | 480 | 8 | 0.8 | 4.9 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842524600 | 400 | 640 | 8 | 0.8 | 5.4 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842524603 | 480 | 640 | 8 | 1 | 6.5 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842524605 | 640 | 640 | 8 | 1 | 8.7 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 241 | 296 | 404.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||||||
3842538307 | 400 | 400 | 12.7 | 0.6 | 5.3 | 59.5 | 364 | 304.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||||||
3842538346 | 320 | 480 | 12.7 | 0.6 | 5.1 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 244.5 | 205 | ||||||||||||||||||||||
3842538308 | 400 | 480 | 12.7 | 0.6 | 6.4 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842538309 | 480 | 480 | 12.7 | 0.8 | 7.7 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842538310 | 400 | 640 | 12.7 | 0.8 | 8.6 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842538311 | 480 | 640 | 12.7 | 1 | 10.3 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842538312 | 640 | 640 | 12.7 | 1 | 13.8 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 241 | 296 | 404.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||||||
3842524601 | 400 | 800 | 12.7 | 1 | 10.8 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||
3842524604 | 480 | 800 | 12.7 | 1 | 12.9 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||
3842524606 | 640 | 800 | 12.7 | 1 | 17.3 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 241 | 456 | 564.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||
3842524608 | 800 | 800 | 12.7 | 1 | 21.7 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 81 | 296 | 724.5 | 69 | 284 | 685 | 389 | 20 | 604 | 401 | 665 | 616 | ||||||||
3842524607 | 640 | 1040 | 12.7 | 1.2 | 22.5 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 1004 | 360.5 | 575.5 | 680.5 | 944.5 | 895.5 | 241 | 456 | 564.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||
3842524609 | 800 | 1040 | 12.7 | 1.2 | 28.2 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 1004 | 360.5 | 575.5 | 680.5 | 944.5 | 895.5 | 81 | 296 | 724.5 | 69 | 284 | 685 | 389 | 20 | 604 | 401 | 665 | 616 | ||||||||
3842548684 | 800 | 1200 | 12.7 | 1.2 | 36 | 108.5 | 748.5 | 323.5 | 963.5 | 428.5 | 59.5 | 643.5 | 1164 | 200.5 | 840.5 | 415.5 | 1055.5 | 520.5 | 1104.5 | 735.5 | 81 | 296 | 724.5 | 69 | 284 | 685 | 389 | 20 | 604 | 401 | 665 | 616 | ||||
3842548685 | 1040 | 1040 | 12.7 | 1.2 | 40.6 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 1004 | 360.5 | 575.5 | 680.5 | 944.5 | 895.5 | 321 | 536 | 964.5 | 69 | 284 | 925 | 389 | 20 | 604 | 641 | 905 | 856 | ||||||||
3842548686 | 1040 | 1200 | 12.7 | 1.2 | 46.9 | 108.5 | 748.5 | 323.5 | 963.5 | 428.5 | 59.5 | 643.5 | 1164 | 200.5 | 840.5 | 415.5 | 1055.5 | 520.5 | 1104.5 | 735.5 | 321 | 536 | 964.5 | 69 | 284 | 925 | 389 | 20 | 604 | 641 | 905 | 856 | ||||
3842548687 | 1200 | 1200 | 12.7 | 1.2 | 54.1 | 108.5 | 748.5 | 323.5 | 963.5 | 428.5 | 59.5 | 643.5 | 1164 | 200.5 | 840.5 | 415.5 | 1055.5 | 520.5 | 1104.5 | 735.5 | 131 | 801 | 376 | 1016 | 1124.5 | 69 | 709 | 284 | 924 | 1085 | 389 | 20 | 604 | 681 | 1065 | 696 |
