ASSEMBLY MODULE VFPLUS AL SECTION

Manufacturer: Bosch Rexroth

Material #: 3842547899

Model : ASSEMBLY MODULE VFPLUS AL SECTION

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ASSEMBLY MODULE VFPLUS AL (3842547899) is a high-quality, anodized aluminum conveyor component designed for versatility and efficiency in material handling applications. This assembly module is specifically tailored for use in conveyor sections without a chain bag, such as wedge conveyors and curve wheel drives. Its primary function is to facilitate the insertion and management of chains used within the conveyor system, allowing for easy opening or closing operations. With a maximum length restriction for the wedge conveyor and options for either curve wheels or sliding curves based on product size and version, this module ensures adaptability to various configurations. The effective sliding rail length measures x mm, while the actual chain length extends to x mm. The product's weight stands at . kg, indicating a sturdy yet manageable component. The Bosch Rexroth assembly module is delivered with profile connectors and sheet metal screws necessary for securing the slide rail, offering convenience right out of the box. It is recommended to complement this assembly with a cover profile while ensuring that the slide rail accessory is procured as it's essential for operation. Designed with careful consideration towards maintenance and accessibility, the assembly module can be installed at any easily accessible point along the conveyor section. It boasts an uninterrupted support profile with slide rail within the module area, promoting smooth running of the system. However, it requires a slide rail interruption only on one side—the side that needs to be opened—facilitating easy access while maintaining structural integrity. The natural color of this Bosch Rexroth assembly module seamlessly integrates into various industrial environments without compromising on aesthetics. With its robust construction and thoughtful design features, it stands as a reliable solution for enhancing conveyor system functionality.

$309.19 USD

Availability: 7 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 23, 2024 when ordered in

ASSEMBLY MODULE VFPLUS AL SECTION

Assembly module VFplus AL

Unpacked Weight: 0.88 kg

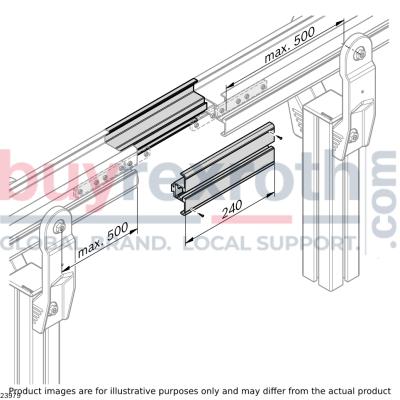

The assembly module is used for inserting and closing or opening the chain. It can be installed at any point on the conveyor section that is easy to access in operation. The assembly module is intended for sections with drives without a chain bag (e.g. wedge conveyor, curve wheel drive).

Max. distance from the nearest supports on both sides is 500 mm The support profile with slide rail is not interrupted in the assembly module, enhancing smooth running Slide rail interruption is only required on the side to be opened

Size: 90
The length of the wedge conveyor is limited to 7 m
A curve wheel or sliding curves are available for the return unit of the chain, depending on the product size and version

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Packaging unit	1

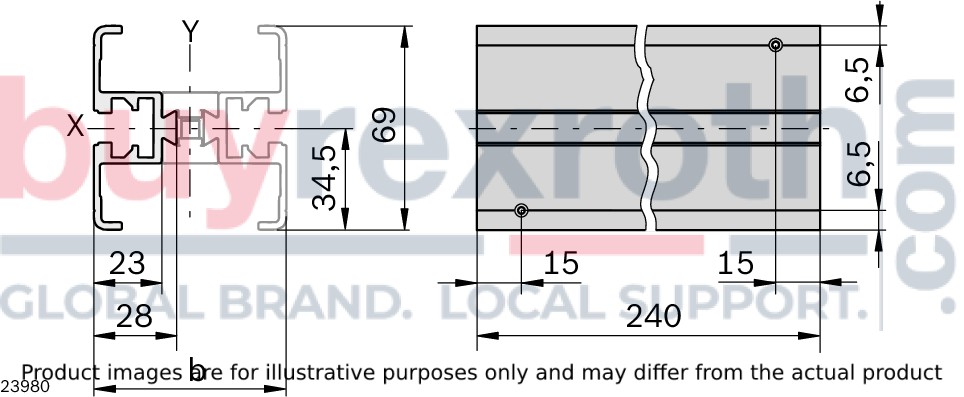

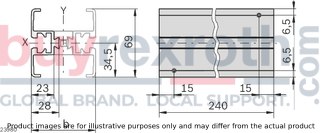

Effective sliding rail length	4x 0,24; 6x 0,24
Actual chain length	2x 0,24
Material	Aluminum, anodized
Weight	0.88
Scope of delivery	Incl. 4 profile connectors and sheet-metal screws for fastening the slide rail
Delivery information	In single parts
Recommended accessories	Cover profile
Required accessories	Slide rail
Size [b]	65,90,120,160,240,320
Color	Natural

	Material
Assembly module VFplus AL	Aluminum; natural, anodized

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Assembly module AL

Condition of Delivery

In single parts

Scope of delivery

Incl. 4 profile connectors and sheet-metal screws for fastening the slide rail

ASSEMBLY MODULE VFPLUS AL SECTION

Manufacturer: Bosch Rexroth

Material #: 3842547899

Model : ASSEMBLY MODULE VFPLUS AL SECTION

Availability: 7 In Stock

Combination matrix

Assembly module AL

Slide rail

Slide rail

Cover profile

Cover profile

Condition of Delivery

Scope of delivery
