CURVE 120+ VERT STS 5°R500

Manufacturer: Bosch Rexroth

Material #: 3842547143

Model : CURVE 120+ VERT STS 5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 120+ VERT STS 5?R500 (3842547143) is a meticulously engineered vertical curve designed for seamless integration with conveyor systems. This component is specifically tailored for transitions between horizontal and ascending conveyor sections, enhancing the versatility of material handling solutions. The curve's design ensures an increase in chain tensile force due to the friction that occurs during the transition, which is critical for maintaining the momentum of conveyed items. The CURVE 120+ VERT STS boasts an effective sliding rail length and actual chain length that are precisely calculated to accommodate various conveyor configurations, ensuring a perfect fit for any system. Its robust construction includes a profile and connector made from nonrusting steel, offering durability and long service life even in demanding industrial environments. This product comes fully assembled with all necessary fastening materials for quick and easy mounting to STS section profiles. It supports all deflection angles and radii, making it highly adaptable to different system layouts. The CURVE 120+ VERT STS is compatible with all suitable chain types and can be used in conjunction with both Advanced or Premium slide rails. Optimized for conveying small products efficiently, this vertical curve is recommended for use at both the infeed and outfeed points of wedge conveyors. Its open section profile version requires no additional accessories beyond slide rails whose lengths are determined through precise calculations based on size 'b' and dimension 'A'. This product represents a key component in creating smooth and efficient conveyor systems that require vertical transitions, embodying Bosch Rexroth's commitment to innovative material handling solutions.

$593.63 USD

More are expected on December 2, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 2, 2024 when ordered in

CURVE 120+ VERT STS 5°R500

Vertical curve STS VFplus 120 5°

Unpacked Weight: 1.64 kg

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.

A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.

Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	5
Productgroup ID	2
Effective sliding rail length	4x 0,24
Actual chain length	2x 0,24
Weight	1.64
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	120
Dimension [A]	246.2
Material information	Profile: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Vertical curve STS

Vertical curve STS VFplus 5°

Vertical curve STS VFplus 15°

Vertical curve STS VFplus 30°

Vertical curve STS VFplus 45°

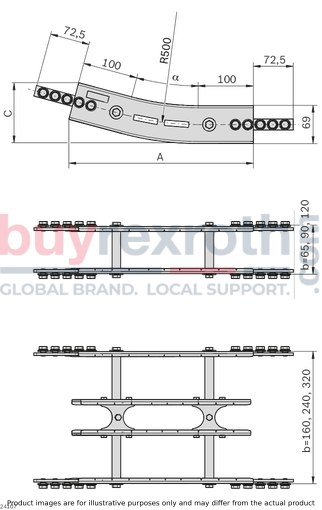

b	α	A	C	R
mm	°	mm	mm	mm
65	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
90	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
120	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
160	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
240	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
320	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500

Slide rail

Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral bolting

CAD data

CURVE 120+ VERT STS 5°R500

Manufacturer: Bosch Rexroth

Material #: 3842547143

Model : CURVE 120+ VERT STS 5
