CURVE 65+ VERT STS 5°R500

Manufacturer: Bosch Rexroth

Material #: 3842547135

Model : CURVE 65+ VERT STS 5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 65+ VERT STS 5?R500 (3842547135) is a meticulously engineered vertical curve component designed for use with conveyor systems. This specific part facilitates smooth transitions between horizontal and ascending conveyor sections, effectively handling the increased chain tensile forces due to friction that occur during such changes in direction. It is particularly recommended for the infeed and outfeed on wedge conveyors, ensuring optimal performance even with small products. This CURVE model boasts an effective sliding rail length and actual chain length that are tailored to meet the needs of various conveyor setups. Its construction features nonrusting steel for both the profile and connector, ensuring durability and longevity in demanding industrial environments. The product comes fully assembled, including fastening materials for mounting to STS section profiles, which simplifies installation and reduces setup time. The versatility of this vertical curve is evident in its compatibility with all deflection angles, radii, and suitable chain types. It is designed to work seamlessly with open section profiles and requires either Advanced or Premium slide rails for proper function. The inclusion of these specifications highlights Bosch Rexroth's commitment to providing adaptable solutions that can be integrated into a wide range of conveyor system configurations.

$581.29 USD

More are expected on November 12, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 12, 2024 when ordered in

CURVE 65+ VERT STS 5°R500

Vertical curve STS VFplus 65 5°

Unpacked Weight: 1.466 kg

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.

A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.

Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	5
Productgroup ID	2
Effective sliding rail length	4x 0,24
Actual chain length	2x 0,24
Weight	1.466
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	65
Dimension [A]	246.2
Material information	Profile: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Vertical curve STS

Vertical curve STS VFplus 5°

Vertical curve STS VFplus 15°

Vertical curve STS VFplus 30°

Vertical curve STS VFplus 45°

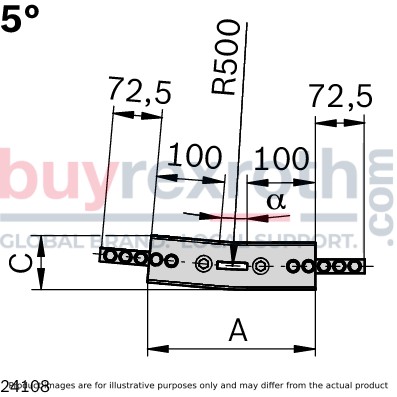

b	α	A	C	R
mm	°	mm	mm	mm
65	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
90	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
120	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
160	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
240	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
320	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500

Slide rail

Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral bolting

CAD data

CURVE 65+ VERT STS 5°R500

Manufacturer: Bosch Rexroth

Material #: 3842547135

Model : CURVE 65+ VERT STS 5

More are expected on November 12, 2024

Combination matrix

Vertical curve STS

Vertical curve STS VFplus 5°

Vertical curve STS VFplus 15°

Vertical curve STS VFplus 30°

Vertical curve STS VFplus 45°

Slide rail

Slide rail
