CURVE 320+ HOR AL 90° R500

Manufacturer: Bosch Rexroth

Material #: 3842547070

Model : CURVE 320+ HOR AL 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

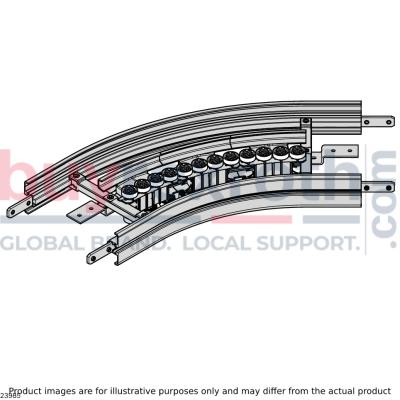

The Bosch Rexroth CURVE 320+ HOR AL 90° R500 (3842547070) is a state-of-the-art roller curve designed for horizontal deflection in conveyor systems. This roller curve is part of the Roller curve horizontal AL VFplus product group, distinguished by its patented roller elements that ensure low-friction and quieter chain direction changes. The ball bearings are made from non-rusting steel and come with seals on both sides, along with FDA-compliant grease filling, enhancing the durability and hygiene of the system. This model has a deflection angle of 90 degrees and is constructed using high-quality materials: the profile is made from anodized aluminum, while the roller carrier consists of PA (polyamide), ensuring strength and longevity. The ball bearings are crafted from non-rusting steel that meets FDA standards, and connectors are made from galvanized steel. Moreover, the rollers themselves are also fashioned from PA. The CURVE 320+ HOR AL 90° R500 excels in applications where there's a need for gentle handling of materials during transport around bends. Its effective sliding rail length and actual chain length can be specified according to requirements, with additional versions available upon request for customization to meet specific needs. This model's design promotes an extended service life for conveyor chains due to its low-friction technology, leading to reduced downtimes. It comes fully assembled, including fastening materials for mounting to the AL section profile. While this summary provides an overview of its capabilities, it's worth noting that there are other deflection angles available upon request and this model can be adapted for use with all suitable chain types or extended into a curve wheel drive or alpine conveyor system. The surfaces in contact with the chain are FDA-compliant, making this roller curve suitable for industries where compliance with strict hygiene standards is paramount.

$1,328.61 USD

More are expected on December 12, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 12, 2024 when ordered in

CURVE 320+ HOR AL 90° R500

Roller curve horizontal AL VFplus 320 90°

Unpacked Weight: 5.468 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	5x 0,98
Actual chain length	2x 0,98
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	5.468
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	320

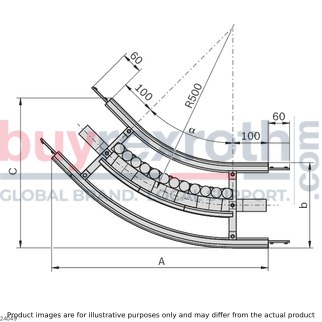

Dimension [A]	760
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
