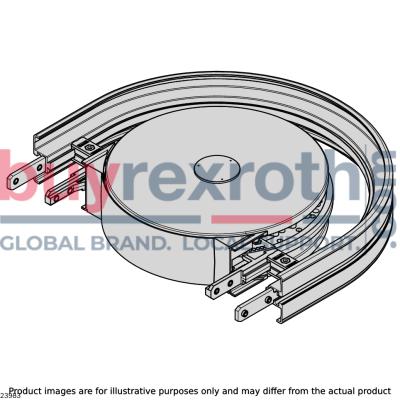

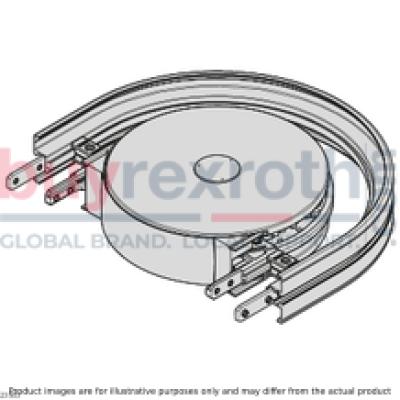

CAM WHEEL 120+ AL 90°

Manufacturer: Bosch Rexroth

Material #: 3842547058

Model : CAM WHEEL 120+ AL 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL (3842547058) is a meticulously designed component engineered to facilitate the horizontal and vertical direction changes of conveyor chains in material handling systems. This curve wheel model is particularly suitable for wedge conveyors and can be used effectively in both horizontal and vertical orientations. It boasts an effective sliding rail length and actual chain length that cater to specific application needs, ensuring a seamless integration into various conveyor setups. The CAM WHEEL's housing is constructed from die-cast aluminum, while the chain wheel itself is made of white PA (Polyamide), ensuring durability and compliance with FDA regulations for materials that come into contact with food products. The ball bearings are made of non-rusting steel, featuring seals on both sides filled with FDA-compliant grease, which contributes to the longevity of the wheel by reducing maintenance requirements. Designed to operate with all suitable chain types, this model ensures low-friction direction changes even at very small radii, thus extending the service life of the system while simultaneously reducing downtimes. The absence of interfering contours above the chain plate height enhances safety and performance. For circuit systems that do not include a chain return in the bottom run using a curve wheel or connection drive, it is imperative to use an appropriate cover for personal safety reasons. The CAM WHEEL can also be extended to a curve wheel drive or alpine conveyor, further enhancing its versatility. Each unit comes fully assembled including fastening materials for mounting to the AL section profile, making installation straightforward and efficient. Additional versions or modifications can be requested through Bosch Rexroth's modification department to meet specific operational requirements. With its robust construction and advanced design features, this curve wheel stands out as an essential component in sophisticated conveying systems where reliability and compliance are paramount.

$673.12 USD

More are expected on December 27, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 27, 2024 when ordered in

CAM WHEEL 120+ AL 90°

Curve wheel AL VFplus 120 90°

Unpacked Weight: 3.5 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant material No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 Deflection angles Suitable chain types: all For circuit systems without chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant material
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	2x 0,63
Actual chain length	2x 0,48
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.5
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	120
Dimension [A]	240.5
Material information	Housing: Diecast aluminum,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

	Material
Curve wheel AL VFplus 65 30°	Housing: diecast aluminum Chain wheel: PA; white Ball bearings: stainless steel/FDA
Curve wheel AL VFplus 65 45°
Curve wheel AL VFplus 65 90°
Curve wheel AL VFplus 65 180°
Curve wheel AL VFplus 90 30°
Curve wheel AL VFplus 90 45°
Curve wheel AL VFplus 90 90°
Curve wheel AL VFplus 90 180°
Curve wheel AL VFplus 120 30°
Curve wheel AL VFplus 120 45°
Curve wheel AL VFplus 120 90°
Curve wheel AL VFplus 120 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Curve wheel AL

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	324.5	279.4	153
	45	185.5	324.5	301.9	153
	90	185.5	324.5	285.5	153
	180	185.5		285.5	153
90	30	210.5	349.5	291.9	165.5
	45	210.5	349.5	319.6	165.5
	90	210.5	349.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	379.5	306.9	180.5
	45	240.5	379.5	340.8	180.5
	90	240.5	379.5	340.5	180.5
	180	240.5		340.5	180.5
