CROSS-CONNECTOR VFPLUS 160AL
Manufacturer: Bosch Rexroth
Material #: 3842546675
Model : CROSS-CONNECTOR VFPLUS 160AL
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CROSS-CONNECTOR VFPLUS 160AL (3842546675) is a versatile and robust component designed for use with modular aluminum framing systems. This die-cast aluminum cross connector is an integral part of constructing conveyor sections, providing a reliable means of attaching main components such as drive/return units and curves. It features a slot on the inside that facilitates the secure attachment of these main components, while an external mm slot allows for the easy addition of lateral guides, supports, or other elements from the framing system.
The CROSS-CONNECTOR VFPLUS 160AL comes complete with screws for attaching the support profile and is delivered non-assembled. The product has been engineered with elongated holes at regular intervals in the support profile to ensure flexible and precise fastening. Moreover, if there's a need for a slide rail attachment, the centering groove serves as an effective drilling aid.

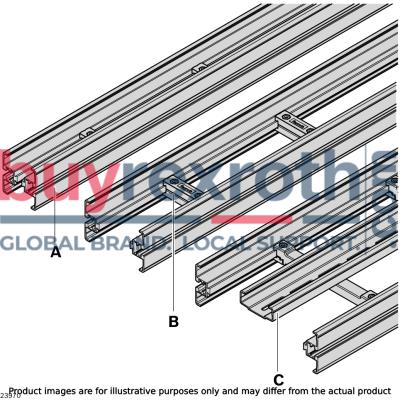

This cross connector is designed to maintain consistency across all sizes with its same profile cross-section. It also offers an open construction in section profile A, which helps in removing any dirt or foreign particles directly, ensuring that two connected open section profiles can effectively form a conveyor section.
For sizes larger than size C, the inclusion of a support profile becomes necessary to enhance stability and strength. The support profile connects to existing cross connectors and is specifically tailored to provide additional support for larger configurations.
In summary, the Bosch Rexroth CROSS-CONNECTOR VFPLUS 160AL is a critical component offering flexibility and durability for constructing conveyor sections within modular aluminum framing systems. Its thoughtful design includes features that facilitate easy assembly and adjustments while ensuring long-term reliability in various applications.
$26.51 USD
Availability: 100 In Stock
Available for immediate shipmentQty: Delivered as early as December 26, 2024 when ordered in
