CROSS-CONNECTOR VFPLUS 90AL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

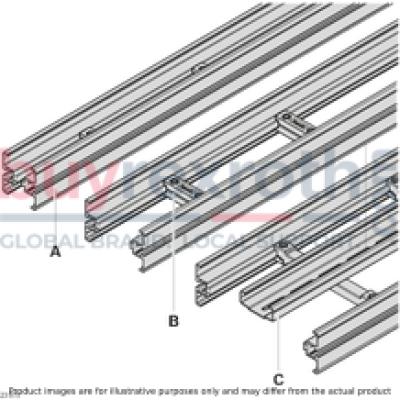

The Bosch Rexroth CROSS-CONNECTOR VFPLUS 90AL (3842546673) is an integral component designed for constructing robust and versatile structures using the modular aluminum framing system. This die-cast aluminum cross connector is part of a comprehensive system that provides support and stability to various applications by connecting main components such as drive/return units, curves, and other elements within the framing structure. With a slot on the inside for attaching main components and an external mm slot for the simple attachment of lateral guides and supports, this product offers flexibility in design and assembly. The CROSS-CONNECTOR VFPLUS 90AL features a support profile with elongated holes at regular intervals, which allows for easy fastening and adjustments as needed. The presence of a centering groove serves as a drilling aid, ensuring that additional components like slide rails can be attached with precision. The cross connector also includes a mounting option for the support profile, enhancing its utility in larger configurations. This product comes complete with screws necessary for attaching the support profile but is delivered unassembled. It is available in various sizes to accommodate different project requirements, maintaining the same profile cross-section across all sizes to ensure consistency in construction. From size 5 upwards, an additional support profile is required to maintain structural integrity. The CROSS-CONNECTOR VFPLUS 90AL's open construction allows for easy maintenance by facilitating the direct removal of dirt or foreign particles that may accumulate during use. This feature is particularly beneficial when two open section profiles are connected by cross connectors to create a conveyor section where cleanliness and smooth operation are critical. With its well-thought-out design features, this Bosch Rexroth cross connector exemplifies efficiency and adaptability in building complex structures while providing reliable performance.
