ROCKER ARM SAFETY SET

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

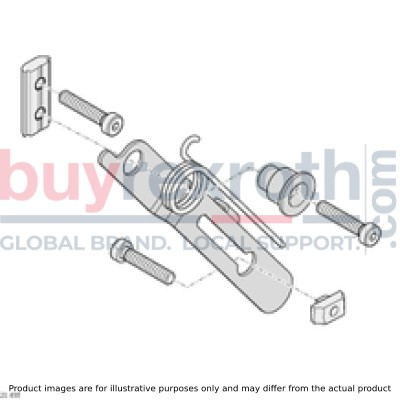

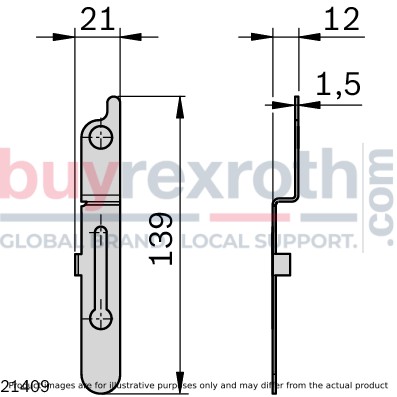

The Bosch Rexroth ROCKER ARM SAFETY SET (3842546560) is a comprehensive safety component designed for securing protective frames in compliance with the Machinery Directive EC. This set includes a tilt lever mechanism that ensures when protective frames are detached, they tilt outwards, signaling that the frame is no longer secured and preventing it from falling out inadvertently. This feature enhances safety by providing a clear visual indication of the frame's detachment. Crafted with durability and ease of use in mind, the set allows for easy removal and retrofitting of EcoSafe protective frames. It is recommended to install this safety set on both sides of EcoSafe protective frames with a width of 40 mm to ensure optimal performance. However, it is important to note that this setup is not suitable for installing protective frames across corners, which may require alternative solutions. The scope of delivery for this product includes all necessary components for installation: a holding plate made from robust stainless steel, an aluminum spacer, a longarm spring constructed from spring steel, and fastening material comprising cylinder head screws (DIN M6x16), sliding blocks, T-nuts for groove 8 M6, and additional cylinder head screws (DIN M6x12). These materials ensure a secure and reliable installation process. The ROCKER ARM SAFETY SET by Bosch Rexroth stands out as an essential safety feature for machinery operators requiring dependable protection frame fixtures. Its thoughtful design and high-quality materials make it an indispensable addition to any compatible machinery setup requiring enhanced safety measures.
