CHAIN PLATE 240+ FLAT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

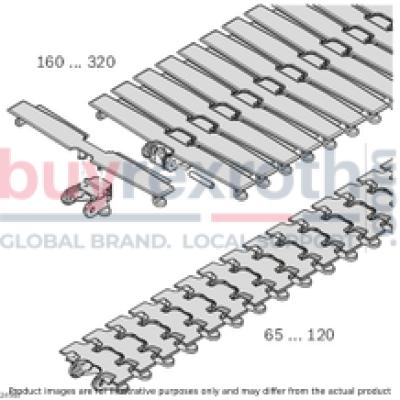

The Bosch Rexroth CHAIN PLATE (3842546094) is a sophisticated component designed for efficient product transport and handling within conveyor systems. This chain plate is specifically crafted for flat conveyor chains, enabling direct or indirect transportation of products, often via workpiece pallets. Its gray color minimizes visual impairment on the chain surface, making it particularly suitable for environments where aesthetic integration is important. The CHAIN PLATE 240+ FLAT boasts compatibility with steel wear pads and can handle ascending or descending sections up to certain angles, contingent on product testing results. It supports accumulation operation, providing flexibility in material handling applications. The design allows for easy replacement from size 240 onwards, enhancing maintenance efficiency. With a focus on customization, the chain plate permits drilling to attach customer-specific structures. Certain sizes feature a mold cavity that accommodates a flat M6 hexagon nut and others include a centering aid underneath the chain plate for added precision during assembly. The maximum drilling capacity is up to 8 mm without interference from the conveyor's contours. Engineered for quiet operation, this product benefits from Bosch Rexroth's patented design that ensures low-vibration transport of small parts and smooth accumulation processes. The CHAIN PLATE can withstand a maximum tensile force of 1250 N and is available in multiple sizes including 80, 100, 160, 240, 320, and 400. Additionally, this component meets stringent regulatory requirements as outlined by EU Directive 2002/72/EC and FDA CFR Title 21 standards. It also offers an ESD version to cater to electrostatic discharge-sensitive environments. In summary, the Bosch Rexroth CHAIN PLATE (3842546094) represents a versatile and durable solution for modern conveyor systems requiring high-performance chain plates with customization capabilities and compliance with health and safety regulations.
