CONNECTING KIT TS5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

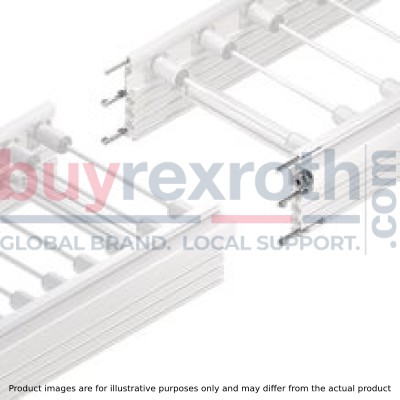

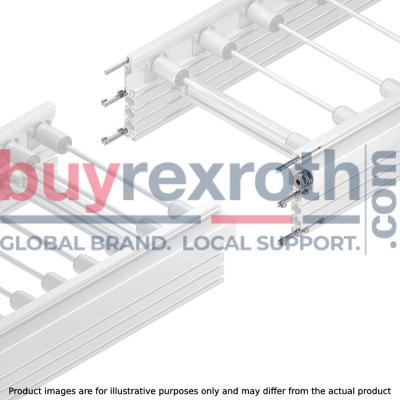

The Bosch Rexroth CONNECTING KIT (3842545699) is an integral component designed for the seamless assembly and connection of TS5 modular conveyor systems. This kit includes essential parts such as profile connectors for section profiles and lateral guides, intermediate plates, and a coupling mechanism. The profile connectors are engineered to securely join the ends of conveyor section profiles or lateral guides, ensuring a stable and continuous guide path for materials being transported. The intermediate plates included in this kit serve a vital role in facilitating module transitions within the conveyor system. These plates are used to separate various modules, such as conveyor sections, drives, curves, and diverters, while maintaining the appropriate roller dimensions. This allows for smooth transitions and reliable operation throughout the entire conveying process. At the core of this connecting kit is the coupling designed specifically for connecting king shafts within the TS5 modules. It features a cross plate that compensates for any alignment errors or concentricity tolerances that may occur during assembly or operation. This ensures that even if there are slight misalignments in the shafts, they can still be connected without compromising the functionality of the conveyor system. Constructed from galvanized steel to resist corrosion and wear, this robust connecting kit is built to withstand industrial environments while maintaining performance standards. The package includes not only the profile connector but also screws necessary for installation. However, it is important to note that customers are responsible for greasing the coupling disk as per maintenance requirements. This Bosch Rexroth CONNECTING KIT is an essential selection for businesses looking to maintain or expand their TS5 modular conveyor units with reliable components that ensure efficient operation and durability over time.
