STOP SHEET 455 195

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

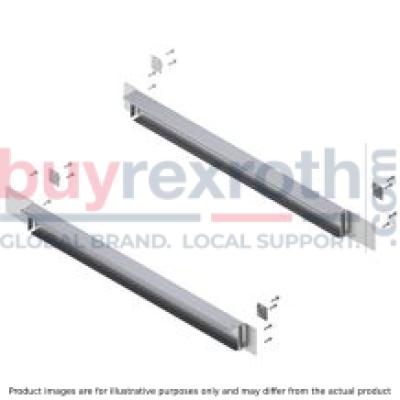

The Bosch Rexroth STOP SHEET (3842545670) is a high-quality safety component designed for use with conveyor systems. This product is an end plate that serves as a protective cover in working areas, enhancing the safety of the system by preventing accidental contact with moving parts. The STOP SHEET is specifically engineered to be compatible with STXHFR and STHFR conveyor units, and it can be utilized on either the right or left drive side, as indicated by the model code. The STOP SHEET is crafted from galvanized steel, ensuring durability and a long service life under typical industrial conditions. It is designed to be clipped between rollers using spring elements, which are included with the product for straightforward installation. The protective covers and end plates are available for various widths and roller spacings, making them versatile for different conveyor configurations. Special covers can also be provided for sections such as centers, transitions, and ends of the conveyor. Additionally, this model includes lateral guide protective covers that require screws (DIN EEMX.8), which must be acquired separately by the customer. Each end plate (both D for left drive side and E for right drive side) requires one screw G for secure attachment. Moreover, each lateral guide cover F necessitates two screws G. For complete assembly, spring elements H are needed for each end plate attachment point to ensure secure fixing without any need for welding or drilling. To finish off the installation neatly, cap covers J are provided to seal open profile ends at each section end. In summary, the Bosch Rexroth STOP SHEET 455 195 offers a robust solution to enhance safety on conveyor systems by providing necessary protection against moving parts with its easy-to-install design and compatibility with various conveyor unit dimensions.
