T-SLOT PLATE 30X100 M 18X5600MM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

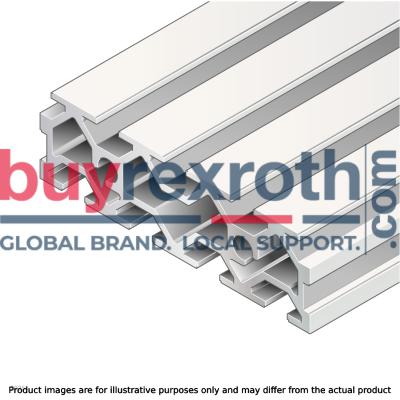

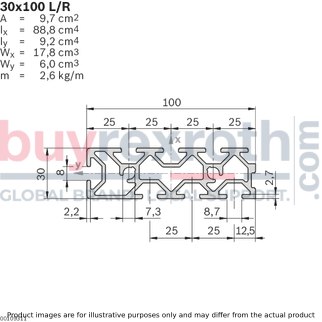

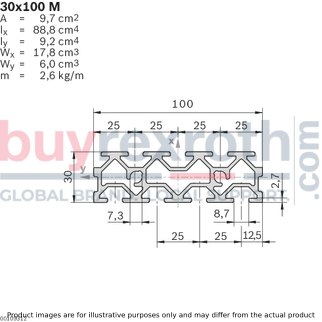

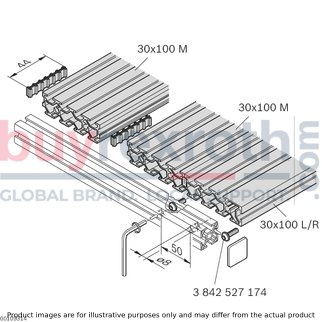

The Bosch Rexroth T-SLOT PLATE (3842542698) is a versatile and robust component designed for constructing experimental structures of any dimension. This modular plate profile features multiple slots with a spacing of 30 mm and a slot size of 8 mm, allowing for the use of 8 mm slot connectors. The grooved plate x M L design facilitates the assembly of grooved plates to any desired width, while the inclusion of a lateral 10 mm slot in the Grooved plate x LR variant serves as an outer stop. Crafted from high-quality aluminum and finished with an anodization process, this T-SLOT PLATE offers excellent durability and resistance to corrosion. The product boasts an impressive moment of resistance in the y-direction (Wy) and an area moment of inertia in y-direction (ly), ensuring stability and strength in your constructions. Similarly, it has defined values for cross-section, moment of resistance in the x-direction (Wx), area moment of inertia in x-direction (lx), and modular dimension that contribute to its mechanical properties. With a mass of m = 3.01 kg/m and standard length delivery units, this profile can be easily integrated into various designs. It is recommended to use two sliding blocks per meter of profile length to secure connections between grooved plates effectively. The open slots design provides flexibility for adjustments during assembly or modifications. Ideal for users looking to create custom configurations, the Bosch Rexroth T-SLOT PLATE is part of Productgroup ID A6, signifying its compatibility with other components within this group like Profile 8x40 and Sliding block. Whether you're building frameworks for industrial applications or prototyping new designs, this T-SLOT PLATE offers reliability and adaptability in one package.
