FOOT SUPPORT BASE TRIPOD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

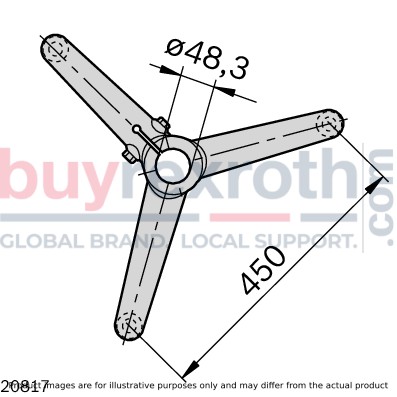

The Bosch Rexroth FOOT SUPPORT BASE TRIPOD (3842533307) is a robust and versatile component designed for constructing stable feet and frames in various industrial applications. This three-leg support base is specifically tailored to work with stainless steel tubes of 48.3mm diameter, ensuring a secure and rigid structure when assembled. The tube is fastened by clamping, which allows for quick adjustments and installations. Additionally, the spindle thread of M16 provides compatibility with a wide range of attachments. The FOOT SUPPORT BASE TRIPOD excels in its adaptability; it can be utilized alongside aluminum sections as well, demonstrating its flexibility across different construction materials. The design incorporates clever product details that enable swift leg set adjustments, making it user-friendly for operators who require efficiency on the job. For enhanced stability, especially when supporting motors or drives, the use of a separate holder (H) is recommended within the STS system. The support base can be fixed at intervals of approximately 2-3 meters depending on the specific requirements such as speed, accumulation behavior, and load weight. Moreover, the FOOT SUPPORT BASE TRIPOD comes with practical drilling aids located on the underside to facilitate doweling of leveling feet. Its easy-to-clean design features draining surfaces to ensure maintenance is straightforward and hygiene standards are upheld in environments where cleanliness is paramount. It should be noted that when employing feet versions B and C, cross reinforcements become essential due to stability considerations. The holder (G) not only supports standard configurations but also accommodates ascending and descending conveyor sections up to 28 degrees angle depending on the returning chain. In summary, Bosch's FOOT SUPPORT BASE TRIPOD offers a reliable solution for constructing support structures in various industrial settings while providing ease of use and maintenance through its thoughtfully engineered features.
