ROCKER WI/M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

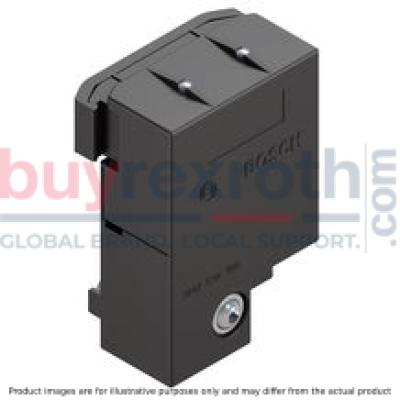

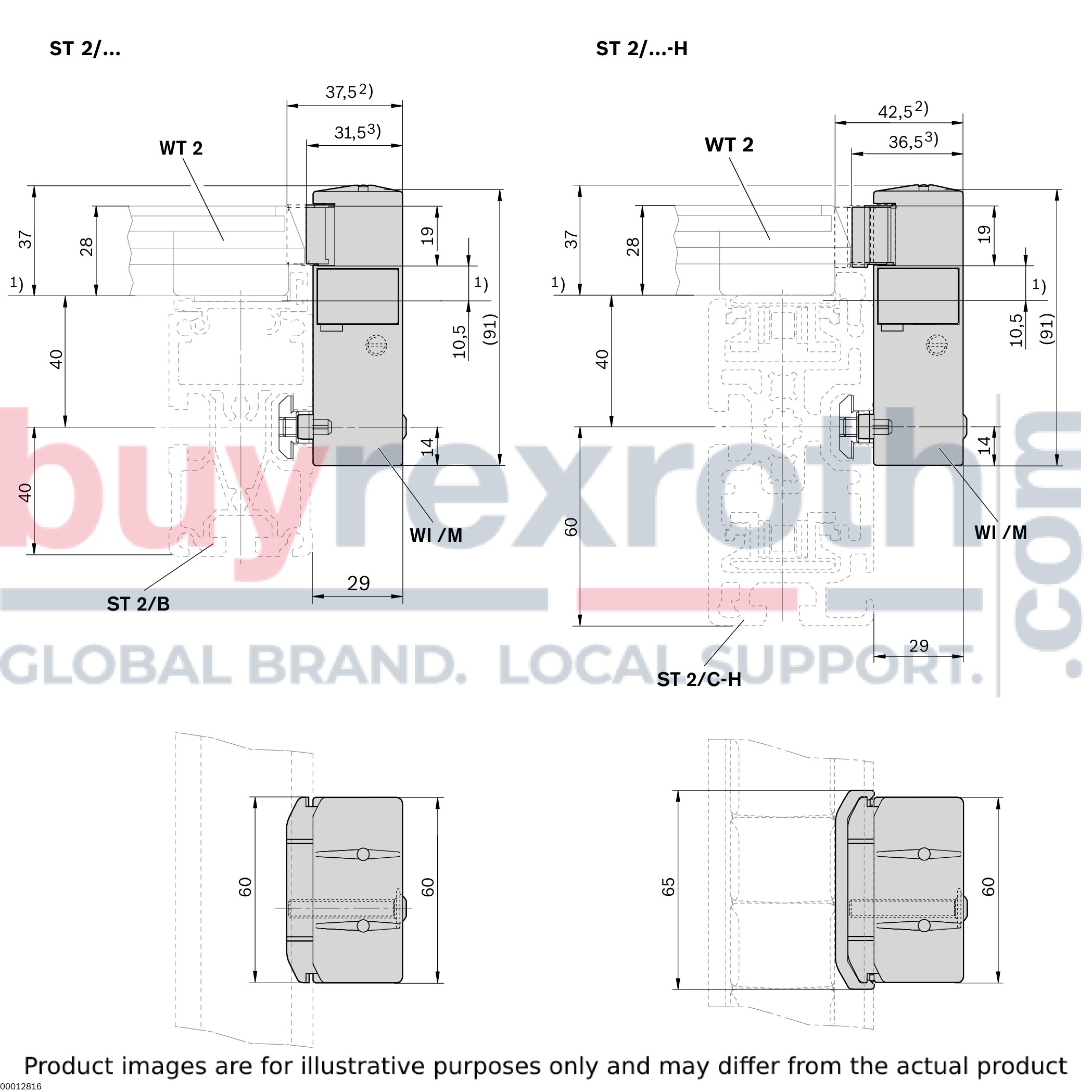

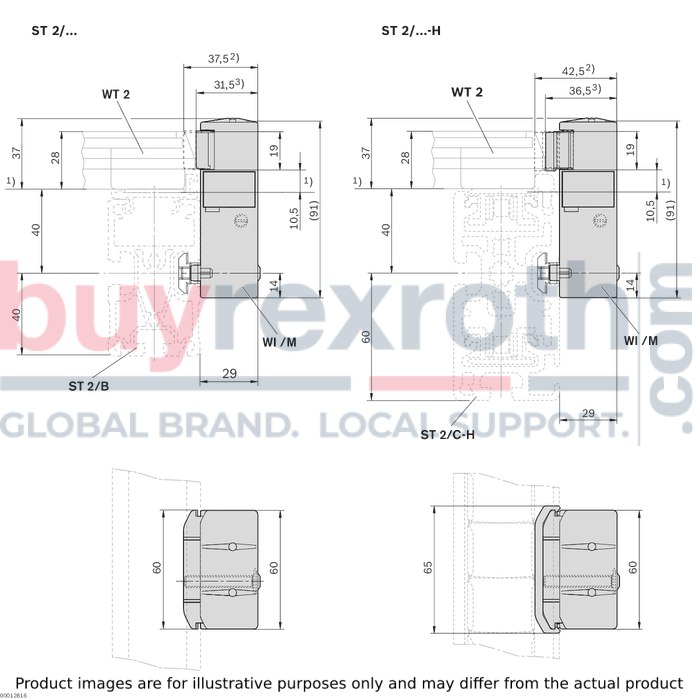

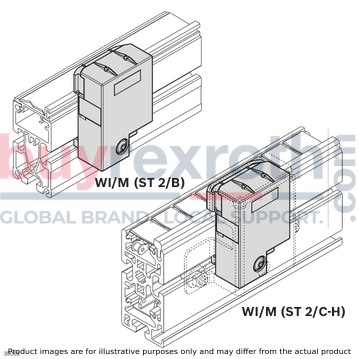

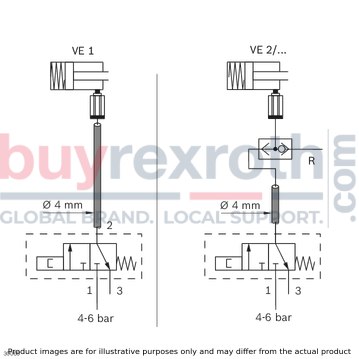

The Bosch Rexroth ROCKER WI/M (3842530797) is a versatile and efficient component designed for use in various applications within automated systems. As a pneumatic cylinder switch, it effectively converts slide activation into a pneumatic signal, allowing for simple and purely pneumatic accumulation pressure regulation when used in conjunction with a VE 2 stop gate. The ROCKER WI/M is particularly suitable for area monitoring, workpiece pallet recognition, and as a stop for transverse conveying of workpiece pallets—though it should be noted that it cannot serve as the sole stop for workpiece pallets arriving from the transverse conveyor. Constructed to be both simple and compact, this rocker is compatible with mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm. It can also be combined with WT 2, WT 2/F, WT 2/H, and WT 2/F-H profiles. The design allows for flexibility in operation; depending on the specific application requirements, the WI/M rockers can be equipped with one or two sensors to enhance functionality. In addition to its primary functions, the ROCKER WI/M is also suitable for use in an Electrostatic Protected Area (EPA), ensuring that it meets safety standards required for operation in sensitive environments where electrostatic discharge could pose risks. Its robust construction ensures durability and reliability in various operational settings. Whether employed for monitoring areas within an automated process or controlling accumulation pressure through its pneumatic signaling capabilities, the Bosch ROCKER WI/M proves to be an essential component in streamlining conveyor system operations.
