CARRYING PLATE 480X480X8 ALU
Manufacturer: Bosch Rexroth
Material #: 3842524602
Model : CARRYING PLATE 480X480X8 ALU
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

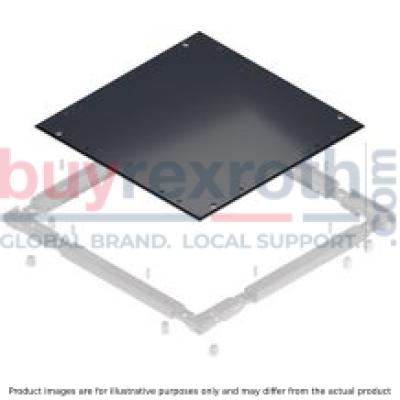

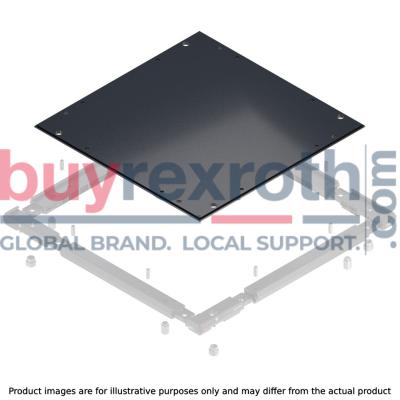

The Bosch Rexroth 3842524602 (CARRYING PLATE 480X480X8 ALU) is a robust component designed for the construction of workpiece pallets. This particular model of carrying plate measures 480mm by 480mm with a thickness of 8mm, crafted from high-quality aluminum for durability and strength. It is one of the standard sizes available, which also includes options in steel with a KTL coating for added protection against corrosion and wear. The carrying plate comes fully drilled, facilitating easy assembly and ensuring compatibility with various frame modules used in WT 2 workpiece pallet systems.
The design allows for straightforward integration with identification and data storage systems, as detailed drilling plans can be found in the RFID systems catalog. This feature is particularly beneficial for applications requiring precise tracking and management of components during manufacturing processes. The Bosch Rexroth CARRYING PLATE 480X480X8 ALU is an essential part of a modular system that enables users to customize their workpiece pallet configurations to meet specific requirements, enhancing efficiency and adaptability in production environments.
Its compatibility with WT 2 frame modules makes it a versatile choice for those looking to create sturdy supports for products during various stages of handling and transport. With its comprehensive drilling pattern and robust construction, this carrying plate serves as a reliable foundation for creating tailored solutions within automated material handling systems, ensuring smooth operations across diverse applications.
$338.07 USD
More are expected on December 16, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 16, 2024 when ordered in
Carrying plate WT 2, AL 8.0 480/480
Unpacked Weight: 4.9 kg
15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating 10 standard sizes in aluminum, 8 mm thick 13 standard sizes in aluminum, 12.7 mm thick You will find drilling plans for identification and data storage systems in the RFID systems catalog Can be combined with frame modules of WT 2 workpiece pallets
Carrying plates are used for self-assembly of WT 2 workpiece pallets using frame modules and fastening elements.
For self-assembly of workpiece pallets for product support |
Completely drilled and ready for assembly |
15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating |
10 standard sizes in aluminum, 8 mm thick |
13 standard sizes in aluminum, 12.7 mm thick |
You will find drilling plans for identification and data storage systems in the RFID systems catalog |
Can be combined with frame modules of WT 2 workpiece pallets |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
Plate thickness [dPL] | 8 |
Productgroup ID | 2 |
Workpiece pallet total weight [mG] | 100 |
Dimension [a] | 108.5 |
Flatness | 0.8 |
Material | Aluminum |
Weight | 4.9 |
Notice | with four threaded holes for reinforcing bolts |
Workpiece pallet width [bWT] | 480 |
Workpiece pallet length [lWT] | 480 |
Steel carrying plate (4.8 mm)
No production drawing
Aluminum carrying plate (8 mm)
No production drawing
Aluminum carrying plate (12.7 mm)
No production drawing
No. |
Width of workpiece pallet |
Length of workpiece pallet |
Plate thickness |
Flatness |
Plate mass |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
bWT |
lWT |
dPL |
▢ |
mPL |
a |
aa |
b |
bb |
c |
cc |
d |
f |
g |
gg |
h |
hh |
i |
ii |
j |
k |
kk |
m |
mm |
n |
o |
oo |
p |
pp |
q |
r |
rr |
s |
t |
tt |
u |
|
mm |
mm |
mm |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
3842174311 | 160 | 160 | 4.8 | 0.3 | 0.9 | 124 | 84.5 | 45 | ||||||||||||||||||||||||||||
3842174313 | 160 | 240 | 4.8 | 0.3 | 1.4 | 204 | 84.5 | 45 | ||||||||||||||||||||||||||||
3842174321 | 240 | 240 | 4.8 | 0.3 | 2.1 | 204 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842174315 | 160 | 320 | 4.8 | 0.3 | 1.8 | 284 | 84.5 | 45 | ||||||||||||||||||||||||||||
3842174323 | 240 | 320 | 4.8 | 0.5 | 2.8 | 284 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842174331 | 320 | 320 | 4.8 | 0.5 | 4.3 | 284 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842174325 | 240 | 400 | 4.8 | 0.5 | 4.1 | 364 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842174333 | 320 | 400 | 4.8 | 0.6 | 5.3 | 364 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842174375 | 400 | 400 | 4.8 | 0.6 | 6.6 | 59.5 | 364 | 304.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||||||
3842174334 | 320 | 480 | 4.8 | 0.6 | 6.4 | 108.5 | 323.5 | 444 | 120.5 | 335.5 | 244.5 | 205 | ||||||||||||||||||||||||
3842174376 | 400 | 480 | 4.8 | 0.6 | 7 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842174381 | 480 | 480 | 4.8 | 0.8 | 9.3 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842174378 | 400 | 640 | 4.8 | 0.8 | 10.4 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842174383 | 480 | 640 | 4.8 | 1 | 12.3 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842523381 | 640 | 640 | 4.8 | 1 | 16.3 | 108.5 | 323.5 | 95.5 | 604 | 280.5 | 495.5 | 544.5 | 241 | 456 | 564.5 | 69 | 284 | 365 | 20 | 505 | ||||||||||||||||
3842524595 | 320 | 320 | 8 | 0.5 | 2.1 | 284 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842524594 | 240 | 400 | 8 | 0.5 | 2 | 364 | 164.5 | 125 | ||||||||||||||||||||||||||||
3842524596 | 320 | 400 | 8 | 0.6 | 3.7 | 364 | 244.5 | 205 | ||||||||||||||||||||||||||||
3842524598 | 400 | 400 | 8 | 0.6 | 3.4 | 59.5 | 364 | 304.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||||||
3842524597 | 320 | 480 | 8 | 0.6 | 3.7 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 244.5 | 205 | ||||||||||||||||||||||
3842524599 | 400 | 480 | 8 | 0.6 | 4 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842524602 | 480 | 480 | 8 | 0.8 | 4.9 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842524600 | 400 | 640 | 8 | 0.8 | 5.4 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842524603 | 480 | 640 | 8 | 1 | 6.5 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842524605 | 640 | 640 | 8 | 1 | 8.7 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 241 | 296 | 404.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||||||
3842538307 | 400 | 400 | 12.7 | 0.6 | 5.3 | 59.5 | 364 | 304.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||||||
3842538346 | 320 | 480 | 12.7 | 0.6 | 5.1 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 244.5 | 205 | ||||||||||||||||||||||
3842538308 | 400 | 480 | 12.7 | 0.6 | 6.4 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842538309 | 480 | 480 | 12.7 | 0.8 | 7.7 | 108.5 | 323.5 | 59.5 | 444 | 120.5 | 335.5 | 384.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842538310 | 400 | 640 | 12.7 | 0.8 | 8.6 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||||||
3842538311 | 480 | 640 | 12.7 | 1 | 10.3 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||||||
3842538312 | 640 | 640 | 12.7 | 1 | 13.8 | 108.5 | 323.5 | 59.5 | 604 | 280.5 | 495.5 | 544.5 | 241 | 296 | 404.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||||||
3842524601 | 400 | 800 | 12.7 | 1 | 10.8 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 324.5 | 285 | 20 | 265 | ||||||||||||||||
3842524604 | 480 | 800 | 12.7 | 1 | 12.9 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 81 | 296 | 404.5 | 69 | 284 | 365 | 20 | 345 | ||||||||||||
3842524606 | 640 | 800 | 12.7 | 1 | 17.3 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 241 | 456 | 564.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||
3842524608 | 800 | 800 | 12.7 | 1 | 21.7 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 764 | 120.5 | 335.5 | 440.5 | 704.5 | 655.5 | 81 | 296 | 724.5 | 69 | 284 | 685 | 389 | 20 | 604 | 401 | 665 | 616 | ||||||||
3842524607 | 640 | 1040 | 12.7 | 1.2 | 22.5 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 1004 | 360.5 | 575.5 | 680.5 | 944.5 | 895.5 | 241 | 456 | 564.5 | 69 | 284 | 525 | 20 | 505 | ||||||||||||
3842524609 | 800 | 1040 | 12.7 | 1.2 | 28.2 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 1004 | 360.5 | 575.5 | 680.5 | 944.5 | 895.5 | 81 | 296 | 724.5 | 69 | 284 | 685 | 389 | 20 | 604 | 401 | 665 | 616 | ||||||||
3842548684 | 800 | 1200 | 12.7 | 1.2 | 36 | 108.5 | 748.5 | 323.5 | 963.5 | 428.5 | 59.5 | 643.5 | 1164 | 200.5 | 840.5 | 415.5 | 1055.5 | 520.5 | 1104.5 | 735.5 | 81 | 296 | 724.5 | 69 | 284 | 685 | 389 | 20 | 604 | 401 | 665 | 616 | ||||
3842548685 | 1040 | 1040 | 12.7 | 1.2 | 40.6 | 108.5 | 323.5 | 428.5 | 59.5 | 643.5 | 1004 | 360.5 | 575.5 | 680.5 | 944.5 | 895.5 | 321 | 536 | 964.5 | 69 | 284 | 925 | 389 | 20 | 604 | 641 | 905 | 856 | ||||||||
3842548686 | 1040 | 1200 | 12.7 | 1.2 | 46.9 | 108.5 | 748.5 | 323.5 | 963.5 | 428.5 | 59.5 | 643.5 | 1164 | 200.5 | 840.5 | 415.5 | 1055.5 | 520.5 | 1104.5 | 735.5 | 321 | 536 | 964.5 | 69 | 284 | 925 | 389 | 20 | 604 | 641 | 905 | 856 | ||||
3842548687 | 1200 | 1200 | 12.7 | 1.2 | 54.1 | 108.5 | 748.5 | 323.5 | 963.5 | 428.5 | 59.5 | 643.5 | 1164 | 200.5 | 840.5 | 415.5 | 1055.5 | 520.5 | 1104.5 | 735.5 | 131 | 801 | 376 | 1016 | 1124.5 | 69 | 709 | 284 | 924 | 1085 | 389 | 20 | 604 | 681 | 1065 | 696 |
