CARRYING PLATE 320X400X8 ALU

Manufacturer: Bosch Rexroth

Material #: 3842524596

Model : CARRYING PLATE 320X400X8 ALU

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

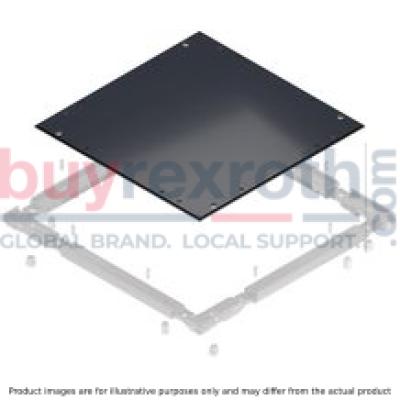

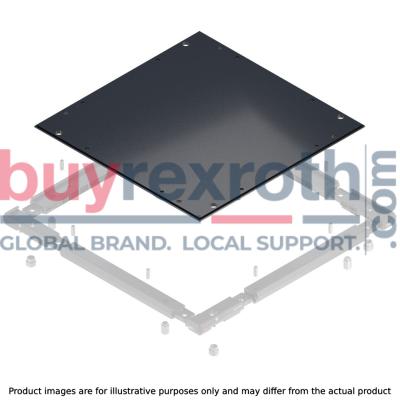

The Bosch Rexroth CARRYING PLATE 320X400X8 ALU (3842524596) is a robust and versatile component designed for the construction of workpiece pallets within the WT 2 system. This aluminum carrying plate measures 320mm by 400mm with a thickness of 8mm, offering a durable and stable platform for product support. It is meticulously prepared for immediate use, featuring a completely drilled surface that allows for straightforward assembly. The plate is part of an extensive range of carrying plates that Bosch provides, which includes 15 standard sizes in steel with a thickness of 4.8mm and a protective KTL coating, in addition to the aluminum options available in both 8mm and 12.7mm thicknesses across ten and thirteen standard sizes respectively. Ideal for self-assembly, this carrying plate can be seamlessly integrated with frame modules to construct customized workpiece pallets tailored to specific requirements. The design facilitates easy attachment of various fastening elements, enhancing its adaptability within different assembly operations. Users will find drilling plans that cater to identification and data storage systems detailed within the RFID systems catalog, ensuring compatibility with advanced tracking and management technologies. The Bosch Rexroth CARRYING PLATE is engineered to support the efficient organization and transport of workpieces throughout manufacturing processes, making it an essential component in automated material handling systems. Its compatibility with WT 2 frame modules underscores its modularity, allowing users to create tailored solutions that meet their precise needs in facilitating smooth production workflows.

$183.49 USD

More are expected on November 26, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 26, 2024 when ordered in

CARRYING PLATE 320X400X8 ALU

Carrying plate WT 2, AL 8.0 320/400

Unpacked Weight: 2.7 kg

15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating 10 standard sizes in aluminum, 8 mm thick 13 standard sizes in aluminum, 12.7 mm thick You will find drilling plans for identification and data storage systems in the RFID systems catalog Can be combined with frame modules of WT 2 workpiece pallets

Carrying plates are used for self-assembly of WT 2 workpiece pallets using frame modules and fastening elements.

For self-assembly of workpiece pallets for product support
Completely drilled and ready for assembly
15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating
10 standard sizes in aluminum, 8 mm thick
13 standard sizes in aluminum, 12.7 mm thick
You will find drilling plans for identification and data storage systems in the RFID systems catalog
Can be combined with frame modules of WT 2 workpiece pallets

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Plate thickness [dPL]	8
Productgroup ID	2
Workpiece pallet total weight [mG]	100
Flatness	0.6
Material	Aluminum
Weight	2.7
Workpiece pallet width [bWT]	320
Workpiece pallet length [lWT]	400

Steel carrying plate (4.8 mm)

No production drawing

Aluminum carrying plate (8 mm)

No production drawing

Aluminum carrying plate (12.7 mm)

No production drawing

No.	Width of workpiece pallet	Length of workpiece pallet	Plate thickness	Flatness	Plate mass	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension
	bWT	lWT	dPL	▢	mPL	a	aa	b	bb	c	cc	d	f	g	gg	h	hh	i	ii	j	k	kk	m	mm	n	o	oo	p	pp	q	r	rr	s	t	tt	u
	mm	mm	mm	mm	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3842174311	160	160	4.8	0.3	0.9								124												84.5					45
3842174313	160	240	4.8	0.3	1.4								204												84.5					45
3842174321	240	240	4.8	0.3	2.1								204												164.5					125
3842174315	160	320	4.8	0.3	1.8								284												84.5					45
3842174323	240	320	4.8	0.5	2.8								284												164.5					125
3842174331	320	320	4.8	0.5	4.3								284												244.5					205
3842174325	240	400	4.8	0.5	4.1								364												164.5					125
3842174333	320	400	4.8	0.6	5.3								364												244.5					205
3842174375	400	400	4.8	0.6	6.6						59.5		364						304.5						324.5					285		20			265
3842174334	320	480	4.8	0.6	6.4	108.5		323.5					444	120.5		335.5									244.5					205
3842174376	400	480	4.8	0.6	7	108.5		323.5			59.5		444	120.5		335.5			384.5						324.5					285		20			265
3842174381	480	480	4.8	0.8	9.3	108.5		323.5			59.5		444	120.5		335.5			384.5		81		296		404.5	69		284		365		20			345
3842174378	400	640	4.8	0.8	10.4	108.5		323.5			59.5		604	280.5		495.5			544.5						324.5					285		20			265
3842174383	480	640	4.8	1	12.3	108.5		323.5			59.5		604	280.5		495.5			544.5		81		296		404.5	69		284		365		20			345
3842523381	640	640	4.8	1	16.3	108.5		323.5			95.5		604	280.5		495.5			544.5		241		456		564.5	69		284		365		20			505
3842524595	320	320	8	0.5	2.1								284												244.5					205
3842524594	240	400	8	0.5	2								364												164.5					125
3842524596	320	400	8	0.6	3.7								364												244.5					205
3842524598	400	400	8	0.6	3.4						59.5		364						304.5						324.5					285		20			265
3842524597	320	480	8	0.6	3.7	108.5		323.5			59.5		444	120.5		335.5			384.5						244.5					205
3842524599	400	480	8	0.6	4	108.5		323.5			59.5		444	120.5		335.5			384.5						324.5					285		20			265
3842524602	480	480	8	0.8	4.9	108.5		323.5			59.5		444	120.5		335.5			384.5		81		296		404.5	69		284		365		20			345
3842524600	400	640	8	0.8	5.4	108.5		323.5			59.5		604	280.5		495.5			544.5						324.5					285		20			265
3842524603	480	640	8	1	6.5	108.5		323.5			59.5		604	280.5		495.5			544.5		81		296		404.5	69		284		365		20			345
3842524605	640	640	8	1	8.7	108.5		323.5			59.5		604	280.5		495.5			544.5		241		296		404.5	69		284		525		20			505
3842538307	400	400	12.7	0.6	5.3						59.5		364						304.5						324.5					285		20			265
3842538346	320	480	12.7	0.6	5.1	108.5		323.5			59.5		444	120.5		335.5			384.5						244.5					205
3842538308	400	480	12.7	0.6	6.4	108.5		323.5			59.5		444	120.5		335.5			384.5						324.5					285		20			265
3842538309	480	480	12.7	0.8	7.7	108.5		323.5			59.5		444	120.5		335.5			384.5		81		296		404.5	69		284		365		20			345
3842538310	400	640	12.7	0.8	8.6	108.5		323.5			59.5		604	280.5		495.5			544.5						324.5					285		20			265
3842538311	480	640	12.7	1	10.3	108.5		323.5			59.5		604	280.5		495.5			544.5		81		296		404.5	69		284		365		20			345
3842538312	640	640	12.7	1	13.8	108.5		323.5			59.5		604	280.5		495.5			544.5		241		296		404.5	69		284		525		20			505
3842524601	400	800	12.7	1	10.8	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5					324.5					285		20			265
3842524604	480	800	12.7	1	12.9	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5	81		296		404.5	69		284		365		20			345
3842524606	640	800	12.7	1	17.3	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5	241		456		564.5	69		284		525		20			505
3842524608	800	800	12.7	1	21.7	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5	81		296		724.5	69		284		685	389	20	604	401	665	616
3842524607	640	1040	12.7	1.2	22.5	108.5		323.5		428.5	59.5	643.5	1004	360.5		575.5		680.5	944.5	895.5	241		456		564.5	69		284		525		20			505
3842524609	800	1040	12.7	1.2	28.2	108.5		323.5		428.5	59.5	643.5	1004	360.5		575.5		680.5	944.5	895.5	81		296		724.5	69		284		685	389	20	604	401	665	616
3842548684	800	1200	12.7	1.2	36	108.5	748.5	323.5	963.5	428.5	59.5	643.5	1164	200.5	840.5	415.5	1055.5	520.5	1104.5	735.5	81		296		724.5	69		284		685	389	20	604	401	665	616
3842548685	1040	1040	12.7	1.2	40.6	108.5		323.5		428.5	59.5	643.5	1004	360.5		575.5		680.5	944.5	895.5	321		536		964.5	69		284		925	389	20	604	641	905	856
3842548686	1040	1200	12.7	1.2	46.9	108.5	748.5	323.5	963.5	428.5	59.5	643.5	1164	200.5	840.5	415.5	1055.5	520.5	1104.5	735.5	321		536		964.5	69		284		925	389	20	604	641	905	856
3842548687	1200	1200	12.7	1.2	54.1	108.5	748.5	323.5	963.5	428.5	59.5	643.5	1164	200.5	840.5	415.5	1055.5	520.5	1104.5	735.5	131	801	376	1016	1124.5	69	709	284	924	1085	389	20	604	681	1065	696
