ZDBT-XA2-1X/160

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

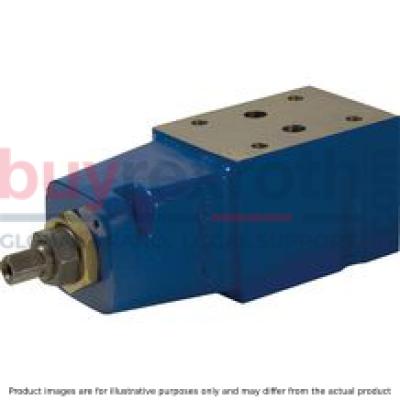

The Bosch Rexroth ZDBT-XA2-1X/160 (0811104120) is a high-precision pressure relief valve designed for effective system pressure regulation. This valve is engineered to serve as a remote control valve with a seat design, primarily utilized for limiting system pressure. It features manual setting capabilities through an adjustment type (4), allowing users to fine-tune the pressure settings according to specific operational requirements. Constructed from durable components, the valve comprises a robust housing (1), a responsive valve poppet (2), and a corresponding valve seat (3). In its default state, the valve poppet (2) is seated against the valve seat (3), creating a seal that prevents fluid flow between the P and T connections. When system hydraulic force reaches the predefined force set on the adjustment type (4), the valve engages to maintain the desired pressure level. The operation of this Bosch relief valve involves the lifting of the poppet (2) away from its seat (3) when excess fluid needs to be diverted, allowing it to flow from P to T and thereby relieving excess pressure. The minimum pressure setting of 3 bar is maintained even with an entirely unloaded spring (5), ensuring consistent performance at lower pressures. Designed for versatility, these valves are typically implemented as pilot control valves for indirectly managing larger fluid flows. The ZDBT-XA2-1X/160 model is suitable for subplate mounting and can be integrated into control panel designs. Its direct operation and adaptability make it an essential component in various hydraulic systems requiring precise pressure management.
