Manufacturer: Bosch Rexroth
Material #: R978870440
Model : 4WMM10EA3X/F/V
$1,536.00 USD
More are expected on May 11, 2029
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5-24 | $1,497.60 USD | $38.40 USD |
| 25+ | $1,459.20 USD | $76.80 USD |
Status: This product is temporarily out of stock.
Qty: Delivered as early as May 11, 2029 when ordered in
This product is eligible for factory repair.

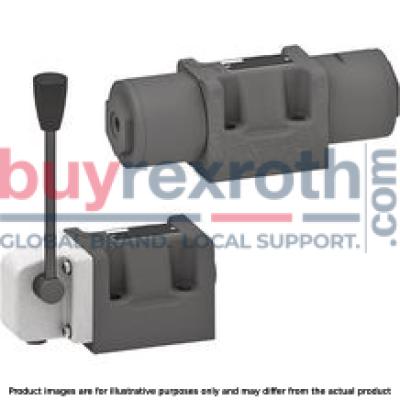

Valves of type WMM are manually actuated directional spool valves.
They control the start, stop and direction of a flow.
The directional valves basically consist of housing (1), one type of actuation (2.1) (hand lever), control spool (3) and one or two return springs (4).
When de-energized, the control spool (3) is held in the central position or in the initial position by the return springs (4) (except for version "O").
The control spool (3) is moved to the desired spool position by means of the types of actuation.
Type 4WMM 10 D5X/F/... (with detent)
Type 4WMM 10 E5X/...
Throttle insert
The use of a throttle insert is required when, due to prevailing operating conditions, flows occur during the switching processes which exceed the performance limit of the valve.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
Symbol |
Direction of flow |
|||
|
P ‒ A |
P ‒ B |
A ‒ T |
B ‒ T |
|
|
A; B |
6 |
6 |
‒ |
‒ |
|
C |
1 |
2 |
5 |
7 |
|
D |
2 |
2 |
5 |
7 |
|
E |
17 |
16 |
19 |
21 |
|
F |
2 |
3 |
22 |
23 |
|
G |
4 |
4 |
24 |
24 |
|
H |
14 |
14 |
20 |
21 |
|
J |
3 |
3 |
9 |
11 |
|
J73 |
22 |
21 |
23 |
24 |
|
L |
3 |
3 |
9 |
9 |
|
M |
14 |
14 |
6 |
8 |
|
P |
17 |
14 |
20 |
23 |
|
Q |
16 |
17 |
4 |
8 |
|
R |
18 |
21 |
18 |
24 |
|
T |
18 |
4 |
10 |
24 |
|
U |
3 |
3 |
6 |
11 |
|
V |
17 |
17 |
18 |
20 |
|
W |
upon request |
|||
|
Central position: |
|||||
|
Symbol |
Direction of flow |
||||
|
P ‒ A |
P ‒ B |
B ‒ T |
A ‒ T |
P ‒ T |
|
|
H |
12 |
12 |
13 |
13 |
15 |
Notice!
The specified performance limits are valid for use with two directions of flow (e. g. from P to A and simultaneous return flow from B to T).
Due to the flow forces acting within the valves, the admissible performance limit may be considerably lower with only one direction of flow (e. g. from P to A while port B is blocked)!
In such use cases, please consult us!
Performance limits (measured with HLP46, ϑOil = 40 ±5 °C)
|
With spring return “–” |
|
|
Characteristic curve |
Symbol |
|
1 |
C, D, E, J, J73, L, M, Q, U, V, W |
|
2 |
H |
|
3 |
T, G |
|
With detent "F" |
|
|
Characteristic curve |
Symbol |
|
4 |
C, D, E, J, J73, L, M, Q, U |
|
5 |
T, G, H |
| 1) | Example:Symbol E with spool position “a” → ordering code ..EA..Symbol E with spool position “b" → ordering code ..EB.. |
Size 16
Dimensions in mm
Dimensions in mm
|
1 |
Valves with 2 spool positions, symbol B and .B |
|
2 |
Valves with 2 switching positions, symbol A, C, D .A |
|
3 |
Valves with 3 switching positions |
|
4 |
Cover and hand lever |
|
5 |
Name plate |
|
6 |
Identical seal rings for port A, B, P, TA, TB |
|
7 |
Additional port TB can optionally be used |
|
8 |
Porting pattern according to ISO 4401-05-04-0-05 |
Notices!
Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. For valves with 2 switching positions and symbols B and .B, the hand lever is installed on valve side B. The dimensions are nominal dimensions which are subject to tolerances.Related Products
