SERVOMOTOR MS2E04-B0BNN-CMSG0-NNNNN-NN

Name: MS2E04-B0BNN-CMSG0-NNNNN-NN
Price: 3,352.42 USD
Availability: OutOfStock

Manufacturer: Bosch Rexroth

Material #: R911398248

Model : MS2E04-B0BNN-CMSG0-NNNNN-NN

$3,352.42 USD

More are expected on June 25, 2025

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Status: This product is temporarily out of stock.

SERVOMOTOR MS2E04-B0BNN-CMSG0-NNNNN-NN

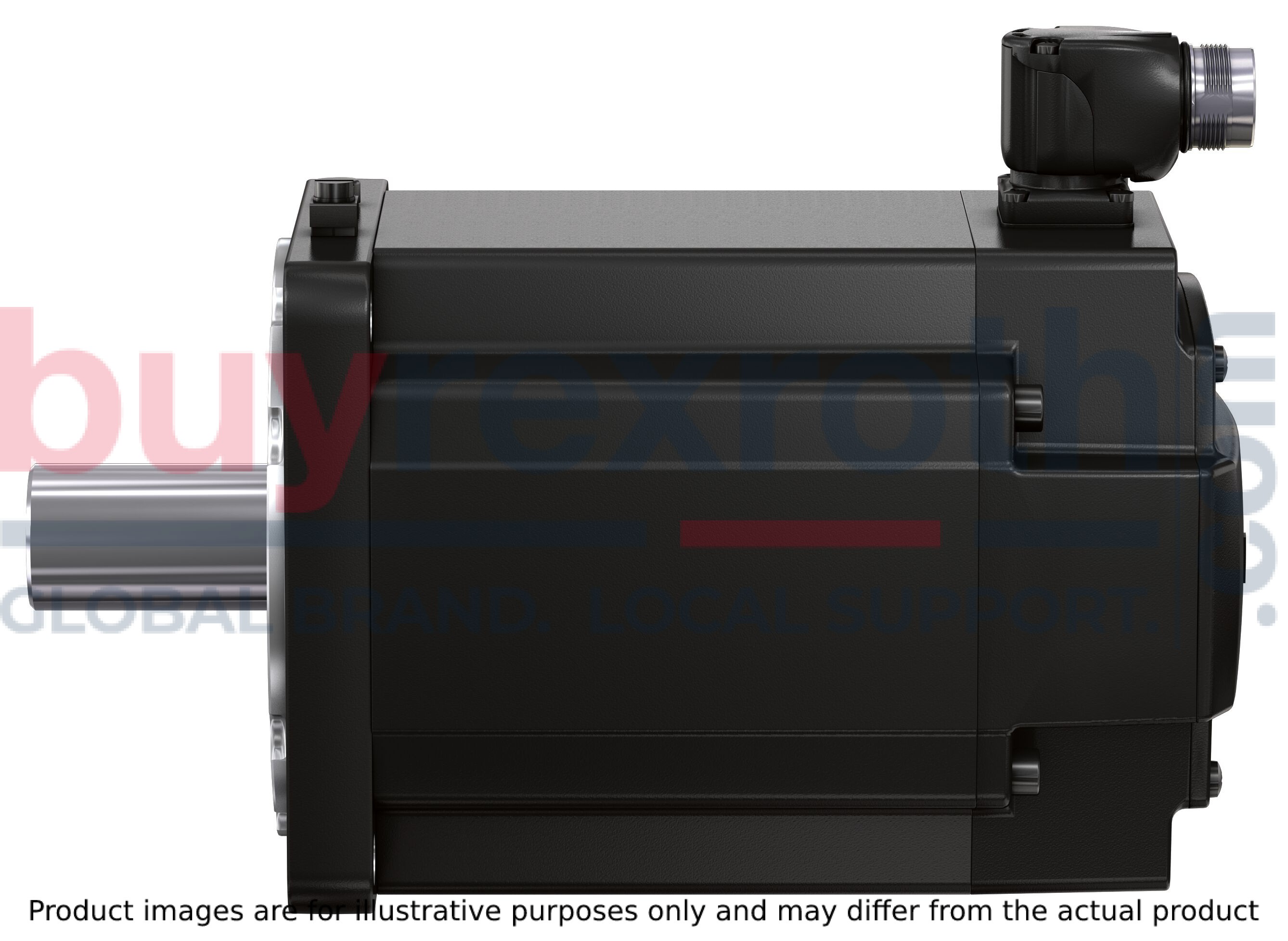

Synchronous Motor MS2E (ATEX), Size 04, self-cooling

The product range of Rexroth´s servo motors combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion-proof versions according to ATEX complete the extensive portfolio.

Unpacked Weight: 3.350 kg

Maximum torque Mmax 3.8 ... 120 Nm

2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Mounting hole	M6
Shaft length	30
Maximum torque	6.4
Productgroup ID	4,6
Rotor inertia	Low inertia
International protection code	IP65
Rotor inertia (with brake) value	0
Shaft	Smooth, with shaft seal
Motor type (with/without brake)	Without holding brake
Flange size	82
Bolt circle	95
Cooling type	Self-cooling
Continuous torque (int./ext. cooling) 100k	1.75
Maximum speed	6000
Type code extension	MS2E04-B0BNN-CMSG0-NNNNN-NN
Continuous torque (int. cooling) 60k	1.75
Shaft diameter	14
Rotor inertia (without brake) value	0.00007
Spigot	50
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.MS2E04-B0BNN-CMSG0-NNNNN-NN**&downloads=true
Weight	3.350
