CONTROL FROM CONTR PANEL VR4115.1-1A1-AA-000-NN-A1-NNNNNNNNNNNN-H

Manufacturer: Bosch Rexroth

Material #: R911381382

Model : VR4115.1-1A1-AA-000-NN-A1-NNNNNNNNNNNN-H

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

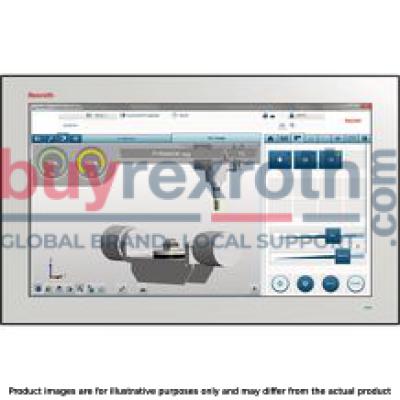

The Bosch Rexroth R911381382 is a state-of-the-art VR series Panel PC designed to offer a high level of performance and versatility for HMI-based applications. This panel PC combines the robustness of the PR box PC with the advanced multitouch capabilities of the DR displays, providing users with an intuitive and responsive interface. It features a range of display formats from 12... to 24 inches, catering to various user preferences and application requirements. Equipped with an Intel Core i5 U 2.3 GHz processor and 8 GB RAM, this Panel PC ensures smooth operation even in demanding situations. The mass storage options include at least one 240 GB SSD, with M.2 flash memory available as an optional upgrade, ensuring ample space for applications and data storage. The multitouch gesture control enhances user interaction, allowing for more efficient operation. With its integrated TPM 2.0 chip, the R911381382 offers enhanced security features, making it well-suited for IoT environments where data integrity is crucial. The device supports Windows 10 IoT Enterprise LTSB as its operating system, further ensuring stability and security for industrial applications. The Panel PC can be installed both horizontally and vertically, providing flexibility in various industrial setups. Its expansion capabilities are significant as well, featuring slots for additional mini PCIe cards—both full-size and half-size—allowing customization according to specific needs. The screen size options provide clear visibility while maintaining a compact form factor, with the weight being approximately 4.8 kg depending on configuration specifics. Overall, the Bosch Rexroth R911381382 offers a powerful platform solution that is predestined for use in industry settings where reliability and adaptability are paramount.

This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement

This product is eligible for factory repair.

Start Repair

CONTROL FROM CONTR PANEL VR4115.1-1A1-AA-000-NN-A1-NNNNNNNNNNNN-H

The VR series Panel PCs combine the properties of the PR box PC and the freestanding DR multi-touch displays. The extremely versatile scalability of the display format and the high performance, plus a multitude of expansion options and standard interfaces, including real-time Ethernet communication, make the VR Panel PC the obvious platform solution for all HMI-based applications. The integrated TPM 2.0 chip provides the necessary security in the IoT environment and makes the robust units predestined for Industry 4.0.

Unpacked Weight: 9.92 kg

16:9 display formats 10 ... 21 inch
Windows 10 operating system
Multi-touch gesture control
Upgrade options via extension slots
Horizontal and vertical assembly

Mass memory: 2 x SSD/HDD, M.2 flash (optional)

NAME	DOCUMENT
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Memory	8 GB RAM
Mass memory	1x min. 64GB SSD
Productgroup ID	4,6
Processor	Intel CoreTM I3 6100U 2.3 GHz
Screen size	15.6" Display / 16:9
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Weight	9.92

Mass memory: 2 x SSD/HDD, M.2 flash (optional)

01	02	03	04		05		06	07	08		09		10	11	12		13		14	15		16	17	18	19	20	21		22
V	R			.	1	-	1			-		-				-	NN	-		1	-	NN	NN	NN	NN	NN	NN	-	H

Device type 1
01	Build-in panel PC	V
Device type 2
02	Box (build-in/ready-made)	R
Performance class
03	Performance class 4 Core i3-6100U	41
	Performance class 4 Core i5-6300U	42
	Performance class 4 Core i7-6600U	43
Display size
04	15.6" display 16:9	15
04	21.5" display 16:9	21
Hardware variant
05	HW type no. 1	1
Interfaces
06	Standard video DisplayPort	1
Mass memory (Flash, SSD ...)
07	1 x min. 32 GB M.2 flash + CFast slot	1
	1 x min. 256 GB M.2 flash + CFast slot	2
	1 x min. 32 GB SSD	A
	1 x min. 256 GB SSD	B
	1 x min. 320 GB HDD1)	C
	2 x min. 320 GB HDD (RAID 1)1)	D
	2 x min. 256 GB SSD (RAID 1)1)	E
Memory (RAM)
08	8 GB RAM	1
08	16 GB RAM	2
Design & HMI display characteristics
09	IPC-Box ATOM standard, horiz.	AA
09	IPC-Box ATOM standard, vert.	AB
mPCIe slot without interface slot
10	Empty	0
	Wi-fi/Bluetooth	A
	4G1)	B
mPCIe-slot with interface slot
11	Empty	0
	2 x Gbit LAN1)	A
	2 x RS2321)	B
	2 x RS422/4851)	C
	4G1)	D
PCIe slots
12	Empty	0
	2 x Gbit LAN	A
	2 x RS232	B
	2 x RS422/485	C
Other hardware characteristics
13	None	NN
Operating system
14	Win10 IoT Value 64 bit A0 included: Win10 IoT Enterprise LTSB 2016 64 bit Value and A0 language pack (DE/EN/FR/IT/ES/PT/SV)	A
14	Win10 IoT High End 64 bit A0 included: Win10 IoT Enterprise LTSB 2016 64 bit High End and A0 language pack (DE/EN/FR/IT/ES/PT/SV)	B
Firmware version no.
15	Version 1	1
16 ... 21	Not assigned	NN
22	Component	H

1)	In preparation

General data

Type		VR4xx15	VR4xx21
Ambient temperature (operation)		+0 °C ... +55 °C	+0 °C ... +55 °C
Ambient temperature (storage/transport)		-20 °C ... +60 °C	-20 °C ... +60 °C
Permissible relative humidity (operation)		85% at 40 °C (non-condensing)
Weight	kg	8.7	11.1
Assembly		Panel mounting
Cooling		Convection (fanless)
Protection type front		IP66
Protection type rear		IP20

Display

Type		VR4xx15	VR4xx21
Screen size X	mm	396	546
Screen size X	in	15	21
Resolution		1366 x 768	1920 x 1080
Aspect ratio		16:9
Operation		Capacitive multi-touch (10 point) - -
Orientation		Horizontal	Horizontal / vertical

Hardware

Type	VR4xx15	VR4xx21
PCI/PCIe slots	1 x Half-Size PCIe 2 x Full-Size Mini PCIe
Flash drive (optional)	M.2 flash + CFast slot
Optional memory	32 GB, SSD 256 GB, SSD - - -
Optional memory	320 GB, HDD 2 x 320 GB, HDD (RAID 1) 2 x 256 GB, SSD (RAID 1)

1)	In preparation

Performance data

Type		VR4xx15	VR4xx21
CPU		Intel CoreTM i3 6100U 2.3 GHz (dual core) Intel CoreTM i5 6300U 2.4 GHz (dual core) Intel CoreTM i7 6600U 2.6 GHz (dual core)
RAM	GB	8	8
RAM optional	GB	16	16
Operating system		Windows 10 IoT Enterprise LTSB

Interfaces

Type	VR4xx15	VR4xx21
Ethernet (standard)	2 x Gbit (Intel i210) 1 x Gbit (Intel i219)
USB-Host	2 x USB 2.0 2 x USB 3.0
Video interface (standard)	DisplayPort - -
Serial interface	1 x RS232 1 x RS232/422/485
Audio interface	Line out

Electrical data

Type		VR4xx15	VR4xx21
Input voltage	V DC	24	24
Input voltage		-20/+25%
Power consumption	W	≤ 84	≤ 84
EMC		Class A
Buffering RTC		Internal battery
UPS		External (VAU02.1)

Mechanical tests

Type		VR4xx15	VR4xx21
Vibration resistance	g 1)	2	2
Vibration resistance	g 2)	0.3	0.3
Shock resistance	g	10	10

1)	With SSD
2)	With HDD

Machine control panel for 15.6" devices

VAM15

Machine control panel for 15.6" devices

VAM15

Machine control panel for individual requirements Overall width 422 mm, suitable for 15.6” devices Suitable for units in the VDP15, VPP15, VEP15, VRxx15 (horizontal) and DR0015 (horizontal) series

Operating Instructions

CAD Download

Dimensions

Type		VR4xx15	VR4xx21
A	mm	420	558
B	mm	269	350
C1	mm	7	7
C2	mm	108	108
X	mm	396	546
X	in	15	21

Norms and Standards

Type	VR4xx15	VR4xx21
Certification	CE FCC UL CSA RoHS RoHS China
Industrial security	TPM 2.0 chip onboard
