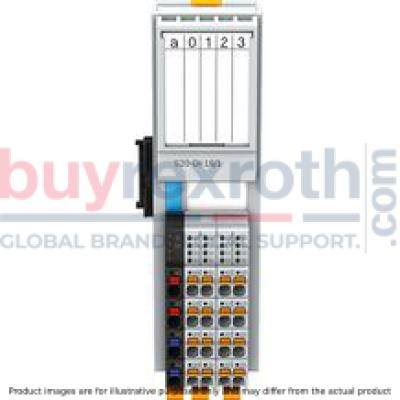

DIGITAL INPUT MODULE S20-DI-16/1

S20 I/O cabinet

Digital input module, 16 inputs, 24 V DC, 1-conductor connection technique

Unpacked Weight: 0.183 kg

Maximum input frequency: 5 kHz Electronic device nameplate Diagnostic and status indicators

This module is designed for use within an S20 station. It is used to acquire digital signals. The filter times for the inputs can be adjusted to increase the interference immunity. Filter times of 100 μs allow the user to applicatively implement a counting function using an input frequency of maximum 5 kHz.

Innovative assembly and installation concept
Individually combinable modules
Space-saving I/O technology for top hat rail mounting
Compact, modular and simple

2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Type code extension	S20-DI-16/1
Productgroup ID	4,6
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Number of channels	16
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DI-16%2F1**&downloads=true
Weight	0.183

General data

Type		S20-DI-16/1
Color		Gray
Weight 1)	g	133
Ambient temperature (operation)		-25 °C ... +60 °C
Ambient temperature (storage/transport)		-40 °C ... +85 °C
Permissible relative humidity (operation)		5 % ... 95 %, no dewing
Permissible relative humidity (storage/transport)		5 % ... 95 %, no dewing
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug and bus base module

Connection data

Type		S20-DI-16/1
Designation		S20 connector
Connection type		Spring-cage connection with direct plug technology
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16
Stripping length	mm	8

Interface local bus

Type		S20-DI-16/1
Connection type		Bus base module
Transmission speed	MBit/s	100

Power supply to logic

Type		S20-DI-16/1
Logic voltage UBus 1)	V DC	5
Maximum current consumption from UBus	mA	120
Maximum power consumption from UBus	mW	600

1)	Via bus base module

Power supply to peripherals

Type		S20-DI-16/1
Feed to digital input modules UI	V DC	24
Maximum permitted voltage range 1)		19.2 V DC ... 30 V DC
Current consumption from UI	mA	20
Typical power consumption from UI	mW	380
Maximum power consumption from UI	mW	480
Overvoltage/reverse polarity protection supply voltage		Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning)
Guarantee 2)	A	≤ 8

1)	Including all tolerances, including ripple
2)	Reverse polarity protection up to 5 A

Digital inputs

Type		S20-DI-16/1
Number of digital inputs		16
Connection type		Direct plug-in technology
Connectivity technology		1-wire technology
Description of the input		Acc. to EN 61131-2 type 1 and type 3
Nominal input voltage	V DC	24
Nominal input current	mA	2.4
Current profile		Linear up to nominal current, then constant around 2.4 mA
Input voltage range "0" signal		-3 V DC ... 5 V DC
Input voltage range "1" signal		11 V DC ... 30 V DC
Input filter time		< 100 µs; 1000 µs; 3000 µs (default)
Process data update 1)	µs	< 100
Reverse polarity protection		Parallel diode (30 V, 5 s)

1)	Bus synchronous

PROFIBUS telegram data

Type		S20-DI-16/1
Need for parameter data	byte	3
Need for configuration data	byte	6

Error messages to the higher-level control or computer system

Type		S20-DI-16/1
Error message		Failure in peripheral supply

Electrical isolation/insulation of the voltage ranges

Type		S20-DI-16/1
Test distance		Test voltage
5 V supply (logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
5 V supply (logic)/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		S20-DI-16/1
Vibration resistance 1)	g	5
Shock 2)		30 g, 11 ms duration, semi-sinusoidal shock pulse
Continuous shock 2)	g	10

1)	Acc. to EN 60068-2-6/IEC 60068-2-6
2)	Acc. to EN 60068-2-27/IEC 60068-2-27

Conformity

Type		S20-DI-16/1
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class B acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		S20-DI-16/1
A	mm	35
B	mm	126.1
C	mm	54
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
